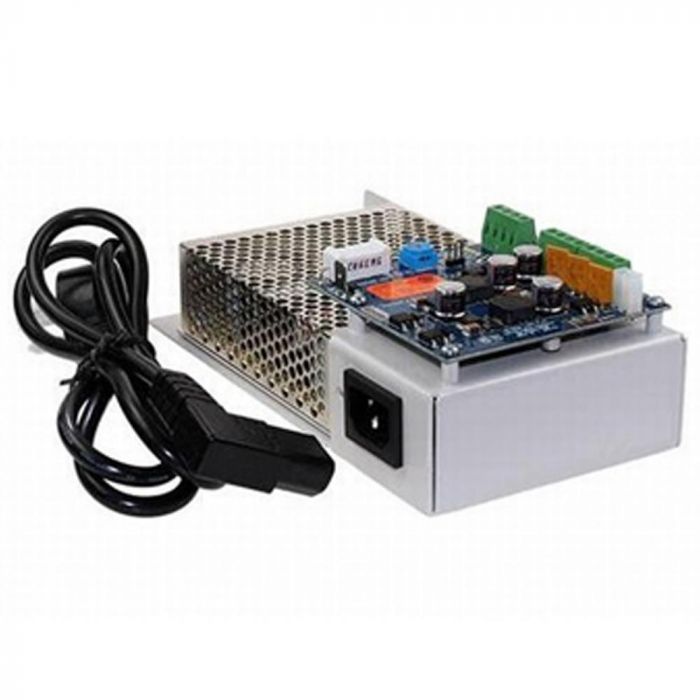

CM723B 5 Amp LAN Power Supply Module
The CM723B is a Bosch LAN power supply module providing 13.8 V DC at 5 Amps from a continuous rated switch mode supply. It provides two independent battery chargers, resettable fuse protection with deep discharge protection, and remote interrogation of power supply status via RAS.
It is designed for Solution 144-style installations with higher auxiliary power requirements, including MW720 or MW730 enclosure mounting. The panel can monitor AC power fail, low battery, output voltage, current overload and power-supply temperature over the RS485 encrypted LAN.
Key Features
- Five-amp output capacity suits higher demand system power layouts
- Dual charger design supports flexible standby battery configurations
- LAN monitoring gives the panel visibility of key power supply conditions
- Deep discharge protection supports safer battery management
- Designed enclosure fit simplifies installation with Bosch MW720 or MW730 cabinets
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Voltage Input:
- 100 V AC to 240 V AC at 2.0 A 50-60 Hz
- Voltage Output:
- 13.8 V DC at 5 Amps
- Standby Battery:
- Up to 2 x 12 V DC 7.2 Ah batteries or 1 x 12 V DC 18 Ah battery
- LAN Cable Length:
- 300 m multi-strand security cable; 1200 m Belden 8723
- Dimensions:
- 50 mm x 23 mm x 58 mm
- Operating Temperature:
- 0 deg C to 55 deg C
- Humidity:
- 5% to 85% at 30 deg C non-condensing
