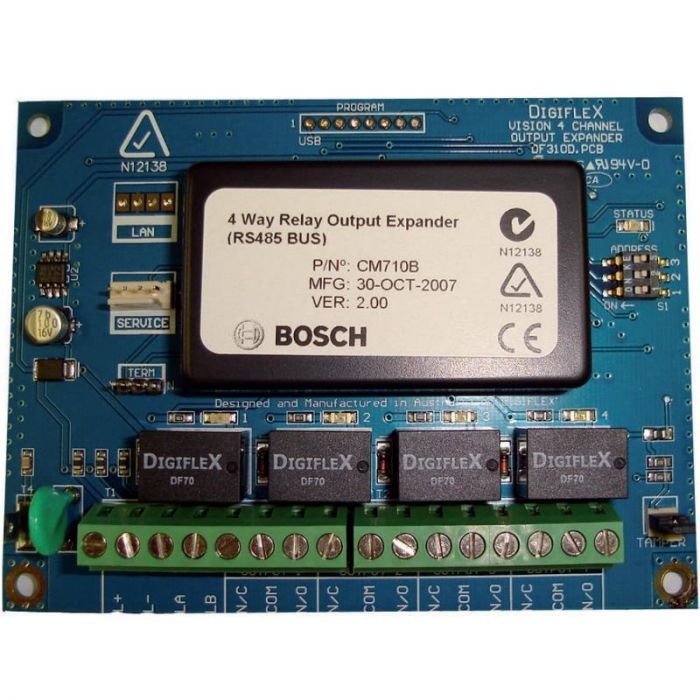

CM710B Output Expansion Module
The CM710B is a Bosch output expansion module for adding physical outputs to a Solution 16i intrusion control panel. It provides four Form C relay contacts, LAN monitoring, a status LED, service code pad connection and separate tamper input.
It can be co-located with the intrusion control panel or installed remotely via the four-wire LAN connection. This makes it useful where output control is needed away from the main panel while still providing monitored module communication and a secure enclosure tamper option.
Key Features
- Adds four relay outputs for auxiliary system control
- LAN-based design supports local or remote module placement
- Service code pad connection helps simplify maintenance at the module
- Separate tamper input supports secure remote cabinet installations
- Status LED makes communication faults easier to identify on site
- Catalogue Family:
- CABLE
- Product Type:
- CABLE
- Relay Outputs:
- 4 Form C relay outputs
- Output Rating:
- 24 V DC at 2 A maximum
- Voltage:
- 10.5 V DC TO 14 V DC
- Current:
- 30 MA STANDBY; 200 MA MAXIMUM
- LAN Cable Length:
- 300 m multi-strand security cable; 1500 m Belden 8723
- Operating Temperature:
- 0 DEG C TO 55 DEG C
- Humidity:
- 5% TO 85% AT 30 DEG C NON-CONDENSING
