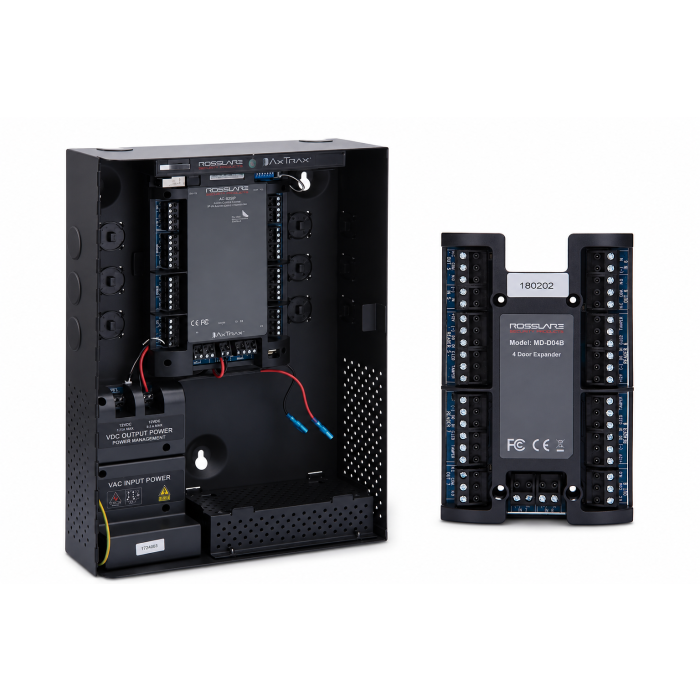

MD-D04B Rosslare 4-Reader Expansion Module
The MD-D04B is a plug-in expansion module for Rosslare AC-425x-B access control panels. It adds a 4-reader interface, four supervised inputs and four Form C relay outputs to extend the controller for additional access points and automation functions.
Installed through the controller expansion port, the module is recognised by Rosslare AxTraxNG or AxTraxPro software and is intended for modular access control upgrades. Its Wiegand and Clock-and-Data reader support makes it useful where extra readers, keypad inputs and supervised I/O are needed without replacing the main controller.
Key Features
- Expands compatible Rosslare AC-425x-B panels with additional controlled-door capacity
- Streamlines panel upgrades through a plug-in module format
- Supports supervised inputs for cleaner access-control monitoring
- Gives installers software-managed configuration through Rosslare management platforms
- Keeps reader and relay expansion within the same controller ecosystem
- Catalogue Family:
- ACCESS CONTROL
- Product Type:
- Access Control
- Compatible Controller Family:
- Rosslare AC-425x-B access control panels
- Reader Interface:
- 4-reader interface
- Inputs:
- 4 supervised inputs
- Relay Outputs:
- 4 x 5 A Form C relays with N.O., N.C. and COM contacts
- Input Voltage:
- 12 VDC from host controller
- Input Current:
- 135 mA maximum, excluding devices
- Reader Output Voltage:
- 12 VDC
- Maximum Reader Current:
- 300 mA
- Dimensions:
- 115 x 75.9 x 32.5 mm
- Weight:
- 98.2 g
