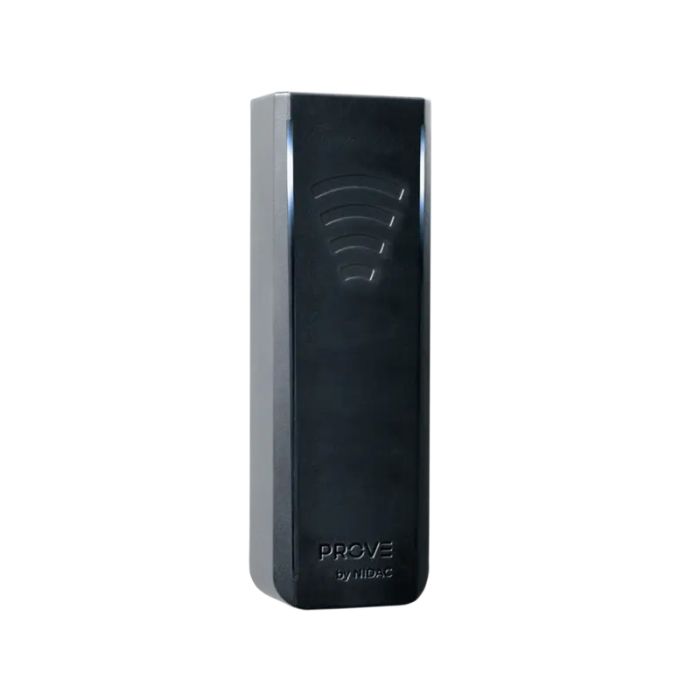

BDF62R Nidac Dual Frequency Card Reader
The BDF62R is a Nidac dual frequency card reader for Presco or Wiegand access control installations. It outputs Presco DTA or Wiegand data and supports LF and HF credentials, including HID 125 kHz and Mifare Classic S50 CSNs.
The reader supports a wide operating voltage range, audible and visual feedback, and long Presco wiring distances for compatible access control installations.
Key Features
- Dual frequency credential support helps consolidate LF and HF reader requirements
- Presco or Wiegand output modes support use across compatible access systems
- Audible and visual feedback helps confirm credential reads at the door
- Wide 9 to 28 V DC input range supports varied access control power arrangements
- Compact slim reader body suits mullion-style access point mounting
- Catalogue Family:
- READERS
- Product Type:
- Readers
- Voltage:
- 9-28 VDC
- Current:
- 200 mA max.
- Operating Temperature:
- -20 to 70 degrees C
- Output:
- Presco DTA or Wiegand
- Wiegand Output:
- 50 microsecond pulse width; 2 ms pulse separation
- Read Range:
- LF up to 20 cm; HF up to 2 cm
- Dimensions:
- 45 mm W x 136 mm H x 25 mm D
- Weight:
- 120 g
