B920 2 Line Alpha Numeric Keypad - SDI2

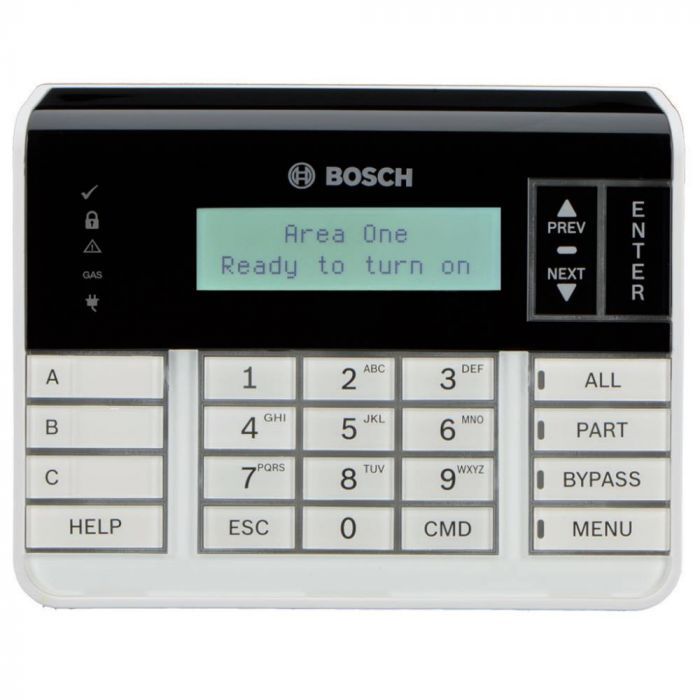

The B920 is a Bosch two-line alpha numeric keypad for SDI2 bus compatible control panels. It provides a two-line LCD display, menu-style user interface, dedicated function buttons, on-screen help and status indicators for armed, ready, power and gas alarm conditions.
It suits commercial and residential security systems that need clear local operation across one or more areas. The self-locking base, built-in bubble level and four-wire control-panel connection support efficient installation in indoor dry locations.
Key Features
- Two-line LCD display makes system events easier to read at the keypad
- Dedicated function buttons simplify common user commands
- Status indicators provide quick visual feedback for system conditions
- Audible tones help users recognise alerts without reading the screen
- Self-locking enclosure design supports a cleaner installation process
- Catalogue Family:
- SYSTEM COMPONENTS
- Product Type:
- System Components
- Display:
- 2-line display; 18 characters per line
- Dimensions:
- 158 mm x 120 mm x 26 mm
- Material:
- Plastic
- Current:
- 35 mA standby; 70 mA alarm
- Voltage:
- 12 V DC nominal
- Operating Temperature:
- 0 deg C to +50 deg C
- Relative Humidity:
- 5% to 93% non-condensing
