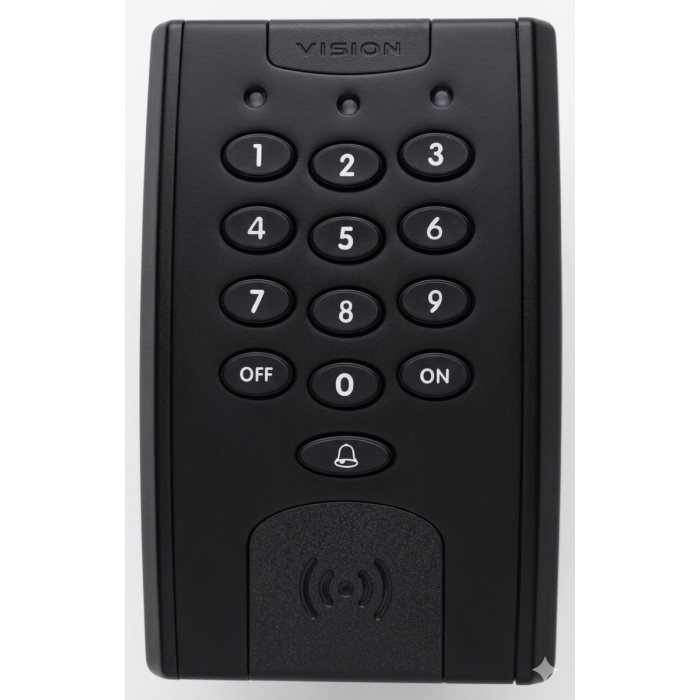

CP155BBK Weather Resistant Keypad with Prox Black
The CP155BBK is a CP155B weather resistant keypad with built-in smart prox reader for selected Solution security control panels. It provides alarm and/or access control functionality, front and rear tamper, backlit buttons and red, green and blue status indicators.
Constructed from high-strength UV resistant plastic and rated IP65 in the supplied guide, it suits external keypad positions where Solution 6000 area or door control is required. RS485 encrypted LAN connection and onboard egress and lock control support integrated access-control use.
Key Features
- Combines alarm-area control and access-control input in one exterior-capable keypad.
- Built-in smart prox reader supports token-based operation where configured.
- Backlit buttons and status LEDs improve usability in varied lighting conditions.
- RS485 encrypted LAN connection keeps the keypad integrated with the Solution 6000 system.
- Onboard egress and lock control reduce wiring complexity for suitable door-control setups.
- Catalogue Family:
- KEYPADS & READERS
- Product Type:
- Keypads & Readers
- Supported Panel:
- Solution 6000 version 2.25, up to 16 keypads supported
- Operating Voltage:
- 10.0 VDC to 14.5 VDC at 100 mA max
- Connection:
- RS485 LAN
- Lock Output:
- Relay form 1c, 24 VDC at 2 Amp
- Egress Input:
- Low to trigger
- Credential Format:
- Two-way 13 MHz high security encrypted smart card
- Dimensions:
- 83 mm x 30 mm x 129 mm
- Environment:
- -10 deg C to +55 deg C, 5% to 93% RH non-condensing, IP65
