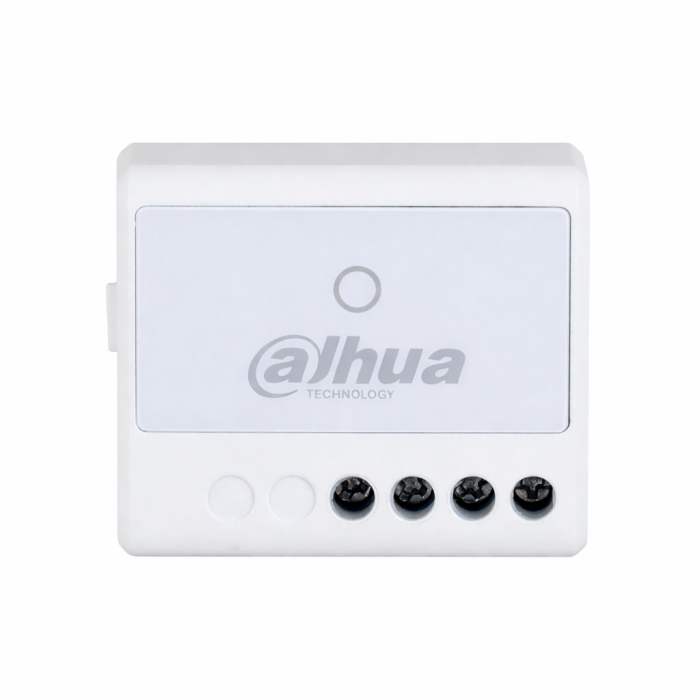

ARM7012-W2 Wireless WallSwitch
The ARM7012-W2 is a Dahua wireless WallSwitch for remote control of 100-240 VAC powered circuits. It supports frequency hopping, two-way communication, jamming detection, communication encryption, cloud update recovery, overheat and overload protection, and voltage/current/energy monitoring.
It is designed for compact wall-mounted installation where a Dahua wireless alarm or automation setup needs controlled switching of an AC circuit. The unit supports 433.1 MHz-434.6 MHz operation and 800 m open-area communication distance under the stated conditions.
Key Features
- Adds wireless AC circuit switching to supported Dahua alarm or automation layouts.
- Monitors voltage, current and energy consumption for operational visibility.
- Includes overheat and overload protection functions for supported switch use.
- Uses compact wall mounting for discreet installation behind control points.
- Supports encrypted two-way communication with frequency hopping.
- Catalogue Family:
- POWER SUPPLY
- Model:
- DHI-ARM7012-W2
- Product Type:
- Power Supply
- Relay Output:
- 1, NO/NC, 100-240 VAC, max 13 A
- Power Supply:
- 100-240 VAC, 50/60 Hz
- Carrier Frequency:
- 433.1 MHz-434.6 MHz
- Communication Distance:
- 800 m in open areas
- Installation:
- Wall mount
- Dimensions:
- 39 x 33 x 19 mm
- Material:
- Plastic
- Operating Temperature:
- -10 C to +55 C indoor
