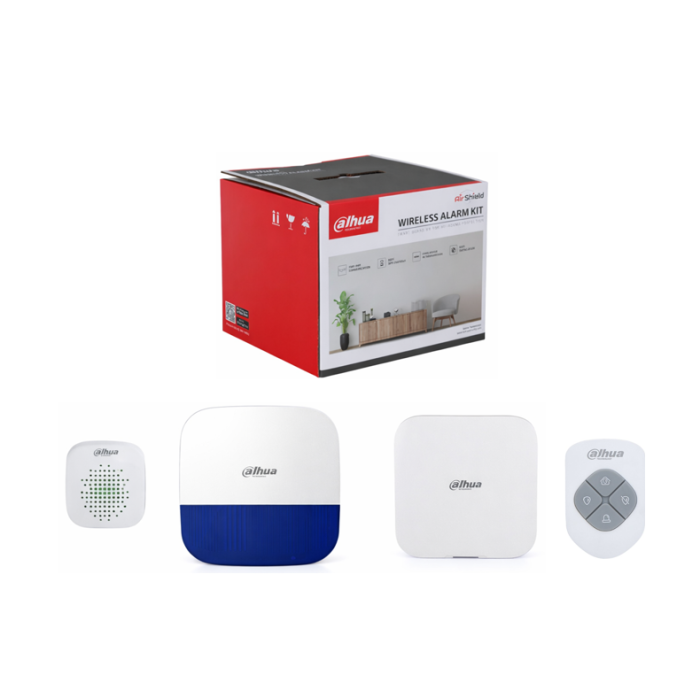

ART-ARC3800H-06-FW2 Wireless Alarm Kit
The ART-ARC3800H-06-FW2 is a Dahua wireless alarm kit with an alarm hub and wireless peripherals. It supports alarm video verification through compatible IPC integration, PIR-camera image transfer, voice call alarms, wired and access point network configuration, and Ethernet, Wi-Fi, and 4G network connections.
The kit supports two-way wireless communication with frequency hopping, cloud updates, external siren operation, and PIR detector operation.
Key Features
- Provides a broader Dahua wireless alarm kit for hub-based security deployments.
- Supports Ethernet, Wi-Fi and 4G network redundancy for alarm communication.
- Enables alarm video verification where supported cameras and hub integration are configured.
- Uses two-way wireless communication and frequency hopping across peripherals.
- Keeps hub and peripheral roles clear for larger wireless alarm deployments.
- Catalogue Family:
- ALARM SENSOR
- Model:
- DHI-ART-ARC3800H-06-FW2
- Product Type:
- Alarm Sensor
- Network Mode:
- Ethernet, Wi-Fi and 4G
- Communication Mechanism:
- Two-way with frequency hopping
- Alarm Video Verification:
- Supported through IPC integration
- Voice Call Alarm:
- Supported; SIM card needed
- External Siren Protection:
- IP65
- PIR Detector Power:
- CR123A battery
- Hub Communication Distance:
- Up to 1,400 m in open space
- Hub Power Supply:
- 100-240 VAC, 50/60 Hz
- Hub Material:
- PC + ABS
- Installation:
- Hub supports wall mount and desktop mount
