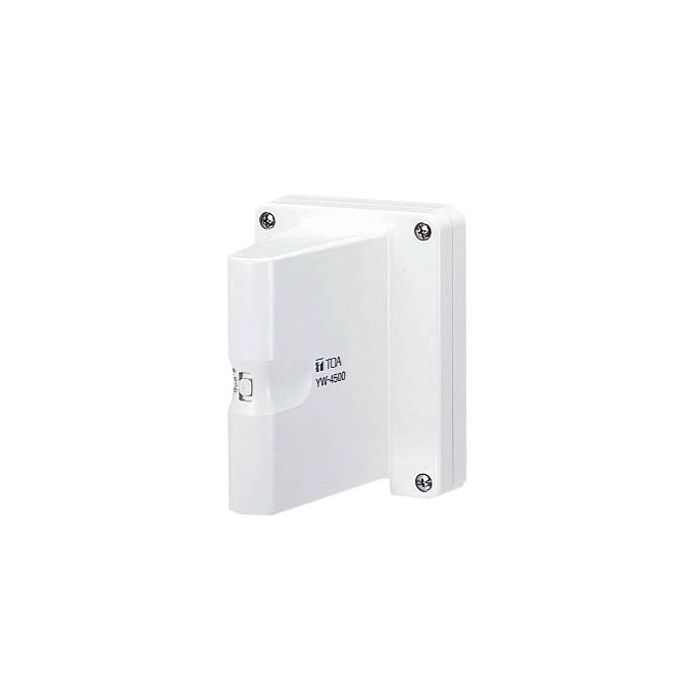

YW4500 TOA YW-4500 Wall-Mounted UHF Wireless Antenna
The TOA YW-4500 is an indoor wall-mounted dipole antenna for UHF wireless systems. It provides 680-880 MHz receiving frequency coverage, power delivered from a compatible tuner over coaxial cable and a built-in RF signal booster.
It is designed for TOA wireless microphone installations where antenna placement and cable routing affect reception quality. The built-in attenuator settings, recommended cable types and mounting guidance support practical wireless system planning.
Key Features
- Wall-mounted dipole design supports fixed UHF wireless microphone installations.
- Coax-fed power simplifies antenna placement with compatible TOA tuner equipment.
- Built-in RF booster helps compensate for cable loss.
- Selectable attenuation helps manage interference and usable coverage area.
- Cable guidance supports more predictable installation performance.
- Catalogue Family:
- CABLE
- Product Type:
- Cable
- Power Source:
- 7 to 12 V DC delivered from tuner
- Current Consumption:
- Under 24 mA
- Receiving Frequency:
- 680 to 880 MHz, UHF
- Antenna Gain:
- More than 8 dB at 0 dB position
- Attenuator:
- 0 / -10 / -20 dB selectable
- Output Impedance:
- 75 ohm
- Recommended Cable:
- RG-6/U or RG-11/U
- Operating Temperature:
- -10 deg C to +50 deg C
- Weight:
- 300 g
