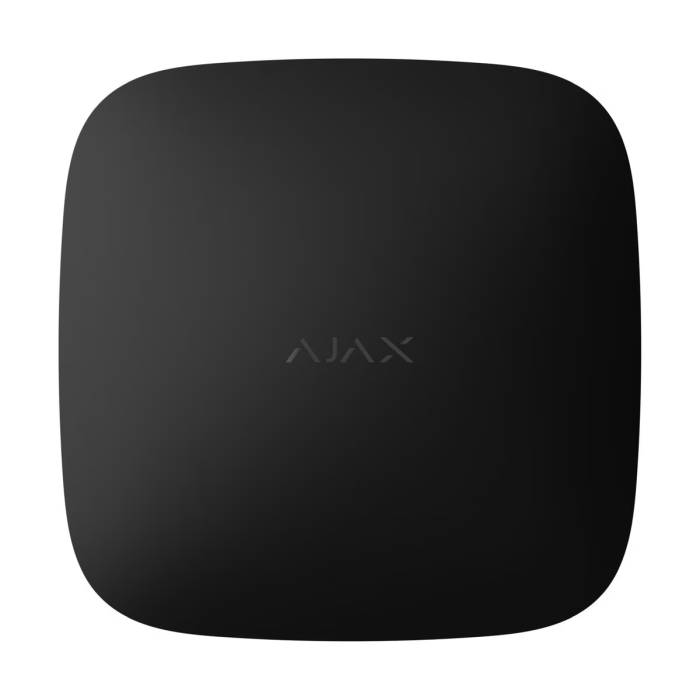

AJAREXB ReX Jeweller Wireless Range Extender - Black
AJAREXB ReX Jeweller is a black wireless radio signal range extender for Ajax systems using Jeweller communication. It extends commands, alarms and events between Ajax devices and a compatible hub, supporting up to 1,800 m radio communication range in open space between the range extender and hub.
The extender is designed for indoor installations where Ajax device coverage needs to reach further while keeping encrypted communication, anti-sabotage features and remote app configuration. It supports up to five ReX units per hub depending on hub model and up to 249 connected devices depending on hub model.
Key Features
- Extends Ajax Jeweller radio coverage for larger indoor alarm layouts
- Helps maintain communication integrity with encrypted data, frequency hopping and device authentication
- Supports larger connected-device counts where the hub model allows it
- Keeps tamper and communication-loss events visible to users and monitoring workflows
- Provides backup battery operation so range extension can continue after mains loss
- Catalogue Family:
- POWER SUPPLY
- Device Type:
- ReX Jeweller wireless radio signal range extender
- Colour:
- Black
- Communication Technology:
- Jeweller wireless communication
- Radio Communication Range:
- Up to 1,800 m between range extender and hub in open space
- Connected Devices:
- Up to 249, depending on hub model
- Rex Units per Hub:
- Up to 5, depending on hub model
- Alarm Delivery Time:
- 0.3 s
- Main Power Supply:
- 110-240 V AC, 50/60 Hz, up to 6 W
- Backup Battery:
- Built-in rechargeable Li-ion 2 Ah battery
- Backup Battery Life:
- Up to 35 hours calculated battery life
- Alternative Power:
- 12 V DC via separately sold alternative power supply unit
- Protection Class:
- IP20
- Operating Temperature:
- -10 deg C to +40 deg C
- Dimensions:
- 163 x 163 x 36 mm
- Weight:
- 330 g
- Product Type:
- Power Supply
