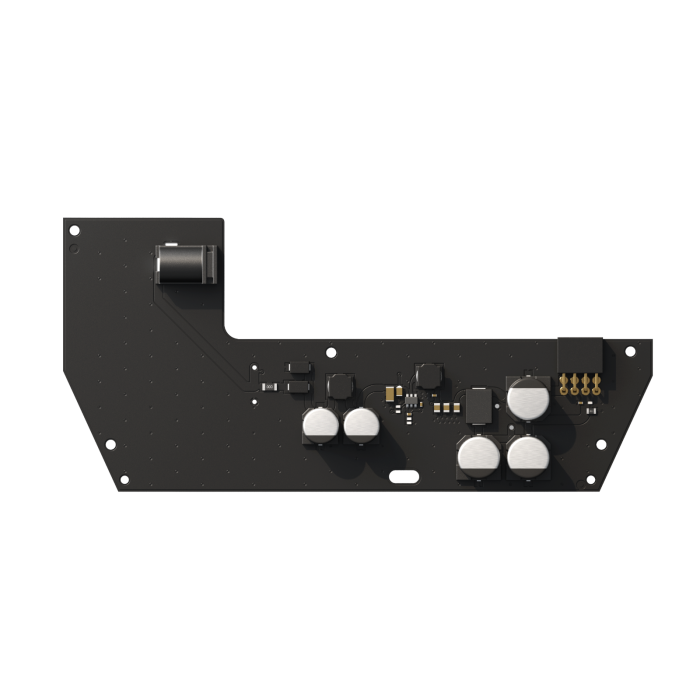

AJAREX12V 12-24V PSU for Ajax Hub, Hub Plus and ReX
The AJAREX12V is a 12-24 V DC power supply unit for Ajax Hub, Hub Plus and ReX, replacing the built-in 110/230 V AC power supply unit to enable operation from a low-voltage power source.
Designed for professional installation inside the hub or range extender enclosure, it allows compatible Ajax devices to operate in locations where mains power is unavailable or unstable, including vehicles, trailers, boats and remote sites. The power supply includes a terminal adapter for low-voltage connection.
Key Features
- Enables compatible Ajax hubs and ReX range extenders to operate from a low-voltage DC power source.
- Suitable for installations where mains power is unavailable or unreliable.
- Installs inside the hub or range extender enclosure in place of the standard AC power supply.
- Uses a standard power jack connection with an included terminal adapter.
- Designed for professional installation in fixed or mobile security systems.
- Catalogue Family:
- POWER SUPPLY
- Compatibility:
- Ajax Hub, Hub Plus and ReX
- Input Voltage:
- 8-32 V DC
- Input Current:
- Up to 1 A
- Output Voltage:
- 4.65 V DC 5%
- Output Current:
- Up to 1.5 A
- Switch-On Voltage:
- 8 V DC 2.5%
- Switch-Off Voltage:
- 7-7.5 V DC, depending on load
- Socket:
- 6.5 x 2 mm
- Plug:
- 5.5 x 2.1 mm power jack
- Installation Method:
- Installed inside the hub or range extender enclosure
- Operating Temperature:
- -10°C to +40°C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 138 x 64 x 13 mm
- Weight:
- 30 g
- Product Type:
- Power Supply
