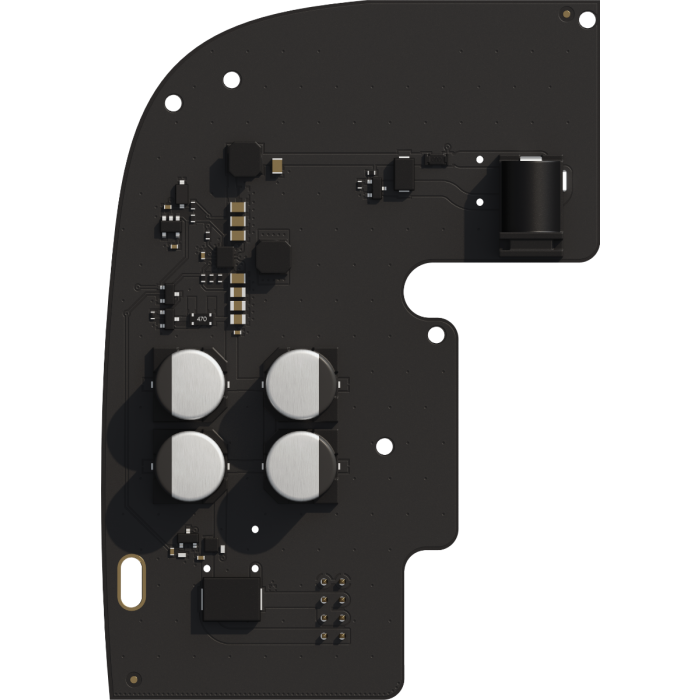

AJAHUB6VCB Ajax 6V PSU Type A Conversion Board
The AJAHUB6VCB is an Ajax 6V PSU Type A alternative power supply unit that allows compatible Ajax hubs and ReX 2 Jeweller to operate from an external battery instead of the standard 110/230 V AC power supply. It supports zinc-air alkaline batteries with an operating voltage of 4.2–10 V DC.
Designed for locations without a reliable mains power supply, the conversion board installs inside the hub or range extender enclosure and enables continued system operation from a portable battery source.
Key Features
- Allows compatible Ajax hubs and ReX 2 Jeweller to operate from an external battery
- Supports security installations in locations without reliable mains power
- Installs inside the device enclosure in place of the standard mains power supply
- Uses a standard jack plug and included terminal adapter for power connection
- Compact internal conversion board design
- Catalogue Family:
- POWER SUPPLY
- Compatibility:
- Hub (4G) Jeweller, Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, and ReX 2 Jeweller
- Recommended Batteries:
- Zinc-air alkaline batteries with an operating voltage of 4.2–10 V DC
- Input Voltage:
- 4.2–10 V DC
- Input Current:
- Up to 1 A
- Output Voltage:
- 4.8 V DC ±5%
- Output Current:
- Up to 1.5 A
- Switch-On Voltage:
- 4.2 V DC ±2.5%
- Switch-Off Voltage:
- 3–3.4 V DC, depending on load
- Installation Method:
- Inside the hub or range extender enclosure
- Operating Temperature:
- -10°C to +40°C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 98 x 70 x 17 mm
- Weight:
- 26 g
- Product Type:
- Power Supply
