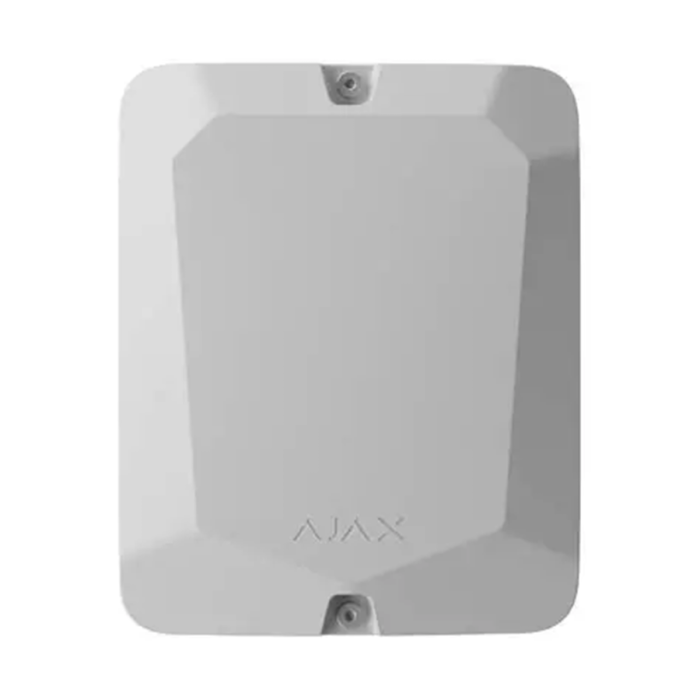

AJAFCASECW Ajax Case C 260 Fibra Casing for LineSupply and 7 Ah Battery - White
The AJAFCASECW is a white Ajax Case C (260) casing for installing LineSupply (45 W) Fibra or LineSupply (75 W) Fibra with a 7 Ah battery. A purpose-built casing with slots for the LineSupply module and battery, plus durable latches and non-falling screws.
It is suited to wired Ajax Fibra power installations where cable routing, device access and serviceable mounting need to be organised in one enclosure. A pre-installed tamper, angled mounting holes, spirit level, perforated zones and included installation hardware support efficient fitting.
Key Features
- Dedicated layout supports LineSupply Fibra installation with a 7 Ah battery.
- Pre-installed tamper helps alert on lid opening or casing detachment.
- Perforated cable zones and fasteners help keep wiring organised.
- Spirit level and angled mounting holes support accurate wall fitting.
- Durable latches and non-falling screws assist later maintenance.
- Catalogue Family:
- ENCLOSURES
- Product Type:
- Enclosures
- Compatible Devices:
- LineSupply (45 W) Fibra; LineSupply (75 W) Fibra; 7 Ah battery
- Battery Note:
- 7 Ah battery not included
- Dimensions:
- 260 x 210 x 93 mm
- Weight:
- 716 g
- Operating Temperature:
- -10 degC to +40 °C
- Operating Humidity:
- Up to 75%
- Complete Set:
- Case C (260), installation kit, quick start guide
- Colour:
- White
