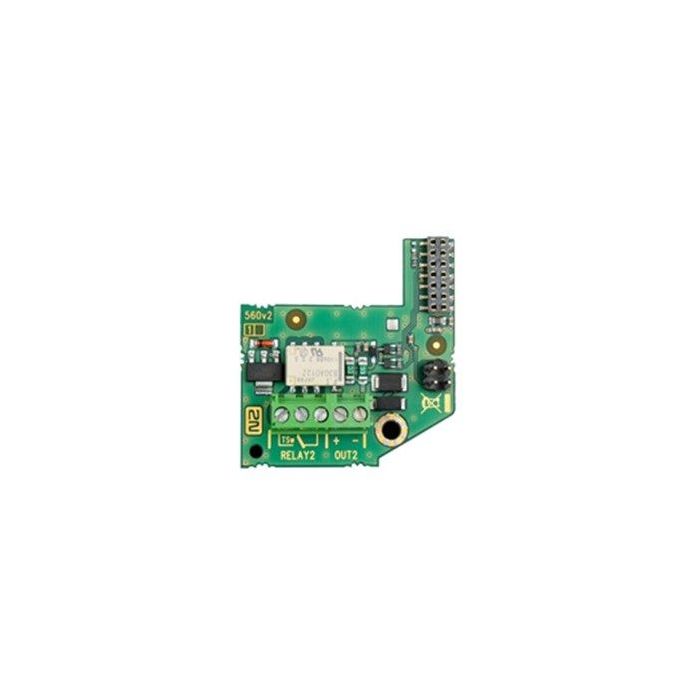

2N9151010 2N Helios IP Force Additional Switch and Tamper Module
The 2N9151010 Additional Switch and Tamper Module is an internal accessory for 2N Helios IP Force and related Helios IP installations, providing switch control and tamper signalling functions.
It is suited to door-entry installations where a secondary controlled output and front-panel opening indication are required within the supported intercom family.
Key Features
- Adds extra switching control to supported 2N Helios IP Force systems.
- Provides tamper signalling for front-panel opening detection.
- Supports lock or auxiliary device control within the intercom architecture.
- Helps expand site functions without moving to an external controller first.
- Fits security-focused door-entry projects using the 2N family.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Supported Family:
- 2N Helios IP Force / 2N Helios IP Safety / 2N Helios IP Vario context
- Passive Switching:
- NO/NC contacts, time-unlimited switching up to 48 V / 2 A
- Active Switch:
- 12 V / 700 mA
- Tamper Function:
- Signals opening of the front panel
