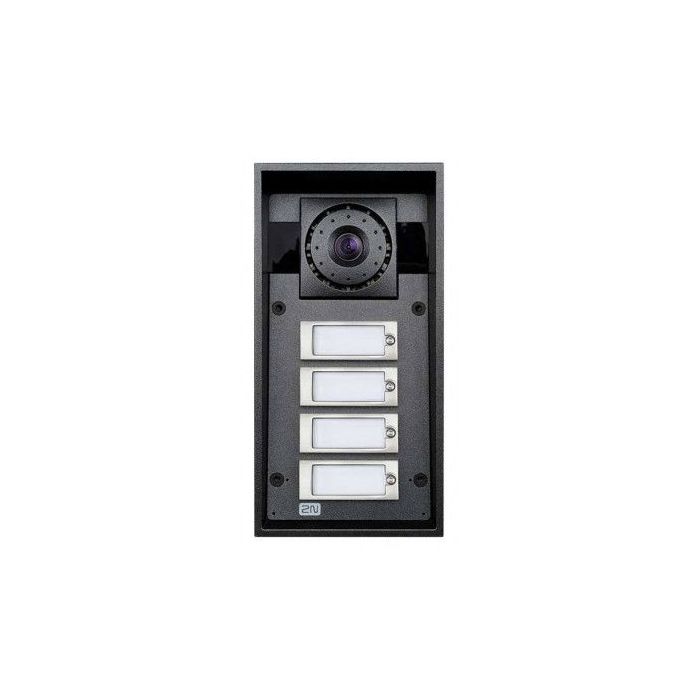

9151104CHW 2N IP Force 4 Button IP Intercom with HD Camera and 10 W Speaker
The 9151104CHW is a 2N IP Force main unit with 4 buttons, an HD camera and a 10 W loudspeaker. It is part of the 2N IP Force range of durable IP intercoms, supporting SIP-based VoIP communication, door access intercom use and control of two electric locks.
Designed for demanding indoor and outdoor access points, this W-designated model has IP65, IP69K and NEMA X4 protection ratings, IK10 impact resistance and a robust cast aluminium housing. Its wide-angle camera, infrared illumination and full-duplex audio with acoustic echo cancellation make it suitable for entrance, gate, garage, industrial and high-noise environments where clear visitor communication and visual verification matter.
Key Features
- Four call buttons support clear visitor routing from a single entrance station
- HD camera with infrared illumination helps improve visual verification in low-light conditions
- 10 W speaker and full-duplex audio support practical two-way communication at busy access points
- High protection and impact ratings suit demanding exposed installation environments
- SIP and IP network support make the unit suitable for integration into VoIP-based access systems
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Buttons:
- 4 buttons
- Camera:
- HD camera
- Camera Sensor:
- 1/3 inch colour CMOS
- Jpeg Resolution:
- Up to 1280 x 960
- Video Resolution:
- 640 x 480
- Frame Rate:
- 30 fps
- Viewing Angle:
- 135° horizontal, 109° vertical
- Infrared Illumination:
- Yes
- Speaker:
- 10 W
- Microphones:
- 2 integrated
- Full Duplex Audio:
- Yes, with AEC
- Power Supply:
- IEEE PoE 802.3af or 12 V ±15% / 2 A DC
- LAN:
- 10/100BASE-TX with Auto-MDIX, RJ-45
- Recommended Cabling:
- Cat-5e or higher
- Lock Control:
- Control of two electric locks
- Additional Switch:
- Additional switch connection option
- Housing:
- Cast aluminium
- Colour:
- Black
- Front Panel:
- Aluminium cast, fibreglass FR4
- Dimensions with Frame:
- 242 x 136 x 83 mm
- Maximum Net Weight:
- 2 kg
- Operating Temperature:
- -40 °C to 55 °C
- Relative Humidity:
- 10 to 95% non-condensing
- Protection Class:
- IP65, IP69K, NEMA X4
- Resistance Level:
- IK10
