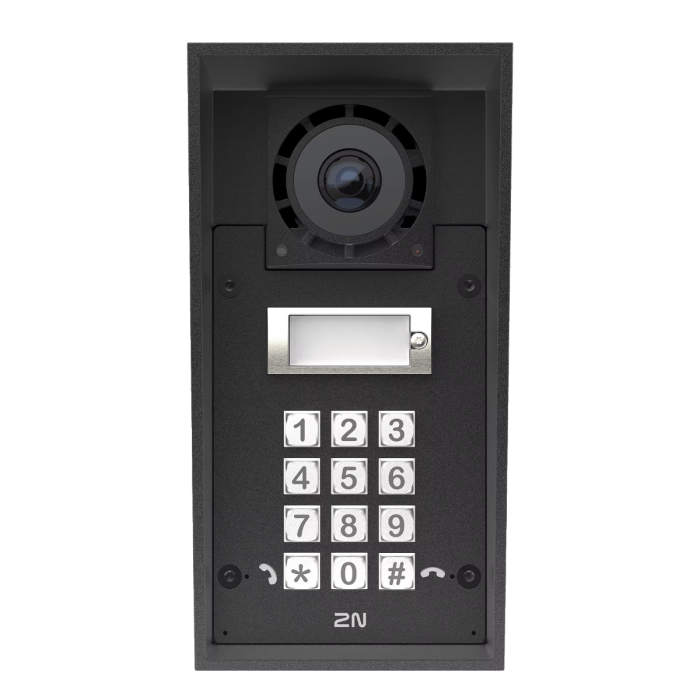

2N9151301CK 2N IP Force 2.0 IP Video Intercom With Keypad And 5MP Camera - 1 Button
The 2N9151301CK 2N IP Force 2.0 is the one-button camera and keypad variant for demanding IP intercom and access-control environments. It combines a 5MP camera, mechanical keypad, PoE+ or 12 V DC power, aluminium construction and high environmental resistance.
It suits entrances where visitor identification, durable housing and secure IP integration matter, including sites that need clear audio and camera support in busy or exposed conditions. Reader and add-on module requirements should be selected separately from this one-button camera keypad configuration.
Key Features
- Durable IP intercom format supports exposed or high-use entrance points.
- 5MP camera and WDR support help improve visitor identification under varied lighting.
- Mechanical keypad adds code entry without requiring a separate keypad device.
- PoE+ support can simplify installation where network infrastructure is available.
- High cover and impact ratings support confident specification in demanding environments.
- Catalogue Family:
- INTERCOM
- Exact Variant:
- 2N IP Force 2.0 1 button, camera, keypad - 9151301CK
- Power Supply:
- 12 V / 4 A DC or PoE+
- PoE Standard:
- IEEE 802.3at
- Max Power Consumption:
- 30 W
- LAN:
- 10/100/1000BASE-TX with Auto-MDIX, RJ45
- Recommended Cabling:
- CAT6 with MPTL
- Keypad:
- Mechanical keypad
- Camera Resolution:
- H.264/H.265 up to 2560 x 1920
- View Angle:
- 133 deg horizontal, 112 deg vertical
- Audio:
- 2 integrated microphones; 10 W / 4 ohm speaker
- SPL Max:
- 94 dB at 1 kHz at 1 m
- Material:
- Aluminium
- Surface Treatment:
- Powder coating
- Operating Temperature:
- -30 deg C to +55 deg C
- Cover Rating:
- IP69
- Impact Rating:
- IK10 to EN 62262:2019
- Surface Mounted Dimensions:
- 109 W x 217 H x 83 D mm
- Weight:
- 2000 g
- Product Type:
- Intercom
