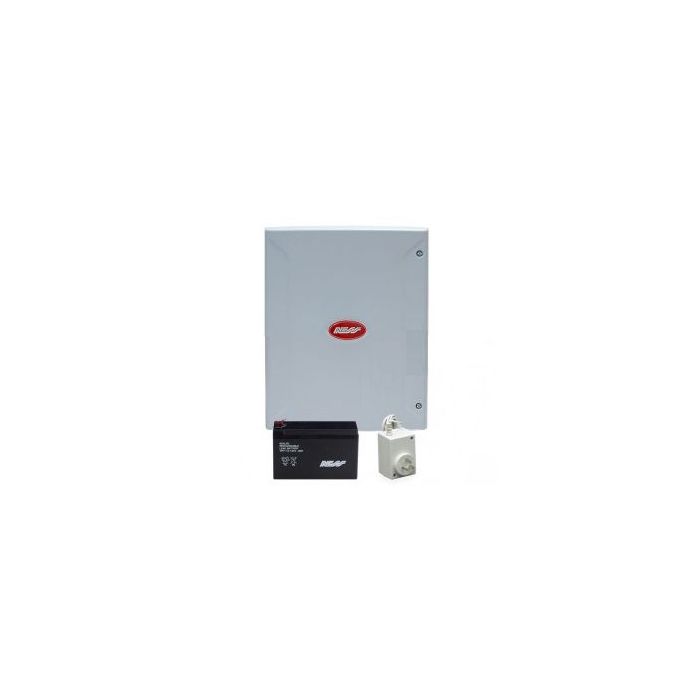

106-165 Ness D16X Panel with DC Power Supply - 16 Zone
The 106-165 Ness D16X Panel is a 16 zone D16X alarm control panel with DC power-supply context. The D8X/D16X Deluxe platform supports programmable users, auxiliary outputs, keypad options and dual-voltage power input.
It is suited to larger hardwired security installations where more physical zones are required than an 8 zone panel provides. The panel can sit at the centre of a Ness installation with keypad, radio interface, access-control and output expansion options added where the project requires them.
Key Features
- Supports larger alarm layouts with D16X 16 zone capacity
- Gives installers a flexible platform for users, areas and outputs
- Allows compatible Ness accessories to be added as site needs grow
- Helps consolidate hardwired security control into one panel family
- Keeps servicing and programming within familiar Ness D8X/D16X workflows
- Catalogue Family:
- ALARM PANEL
- Product Type:
- Alarm Panel
- Panel Family:
- Ness D8X/D16X Deluxe
- Zone Capacity:
- D16X 16 zones
- User Codes:
- 56 user codes
- Power Requirement:
- Dual voltage, 17 VAC or 20 VDC
- Equipment Power Output:
- 13.8 V DC, maximum 500 mA
- Battery:
- 12 V 7.0 Ah sealed lead acid backup battery supported
- Maximum Keypads:
- Maximum 3 mixed keypads or 4 Navigator keypads
