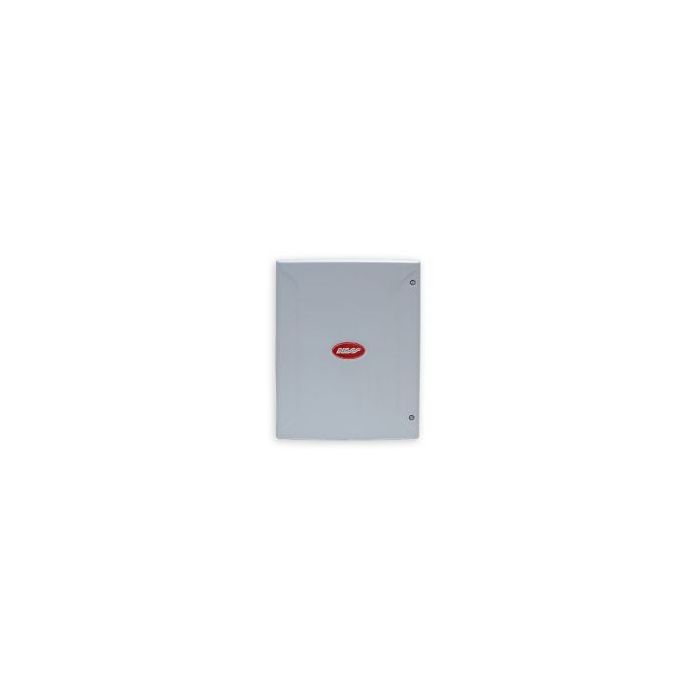

106-164 Ness D8X PCB Kit with DC Power Supply - 8 Zone
The 106-164 Ness D8X PCB Kit is an 8 zone D8X alarm panel kit with DC power-supply and equipment-box context. The D8X/D16X platform supports hardwired zones, programmable user codes, auxiliary outputs and dual-voltage power input.
It is a practical base for hardwired alarm installations that need a flexible Ness control panel platform with room for keypad, wireless, access-control and output expansion options. The kit gives installers a D8X panel foundation while keeping accessory expansion available as the site grows.
Key Features
- Provides an 8 zone panel base for hardwired security installations
- Supports staged expansion through Ness keypad, radio and output accessories
- Helps installers tailor zones, users and outputs to the site layout
- Keeps programming and servicing aligned with the D8X/D16X panel ecosystem
- Suitable for projects that need a panel kit rather than a standalone accessory
- Catalogue Family:
- ALARM PANEL
- Product Type:
- Alarm Panel
- Panel Family:
- Ness D8X/D16X
- Zone Capacity:
- D8X 8 zones
- User Codes:
- 56 user codes
- Power Requirement:
- Dual voltage, 17 VAC or 20 VDC
- Equipment Power Output:
- 13.8 V DC, maximum 500 mA
- Maximum Keypads:
- Maximum 3 mixed keypads or 4 Navigator keypads
- Kit Context:
- DC power supply and equipment box
