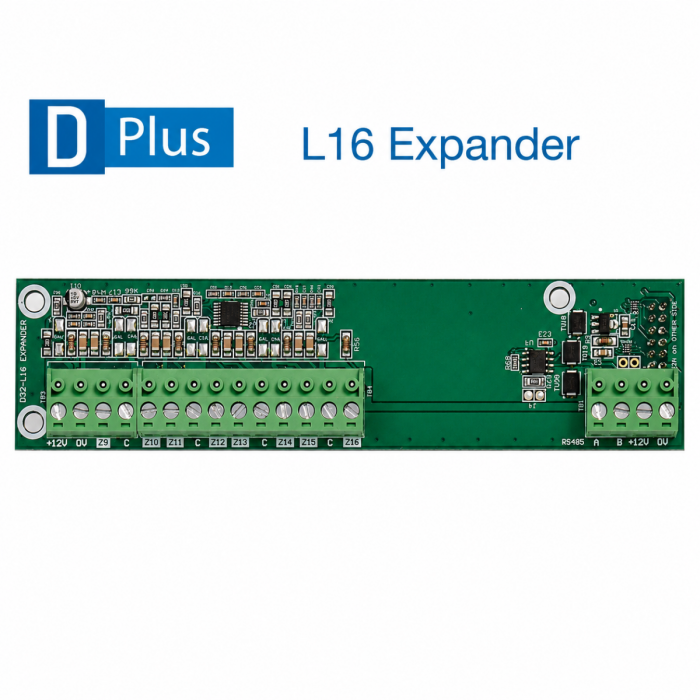

106-982 Ness DPlus-L16 Local Zone Expander - Zones 9-16
The 106-982 Ness DPlus-L16 is a local zone expander for the Ness DPlus alarm control panel platform. It plugs into the DPlus main board to provide zones 9-16, adding 8 zones and giving the panel 16 zones total without zone-doubling.
Designed for DPlus systems that need extra inputs at the main panel, this local expander helps scale an 8-zone installation into a 16-zone configuration while keeping expansion tied directly to the main board. It also provides the bus connection for an R16 remote expander, supporting future DPlus system growth where remote expansion is required.
Key Features
- Expands a Ness DPlus 8-zone base panel into a 16-zone system
- Supports discrete zone expansion without zone-doubling in the 16-zone configuration
- Installs locally by plugging into the DPlus main board
- Provides the bus connection used for an R16 remote expander
- Suits scalable DPlus alarm installations using local and remote expansion options
- Catalogue Family:
- ALARM PANEL
- Model:
- 106-982
- Series:
- Ness DPlus
- Product Type:
- Alarm Panel
- Zone Range:
- Zones 9-16
- Expansion Provided:
- Additional 8 zones
- Total Zones:
- 16 zones total with DPlus base panel
- Installation:
- Plugs into the DPlus main board
- Zone-Doubling:
- No zone-doubling for the 16-zone configuration
- Remote Expansion Connection:
- Provides the bus connection for the R16 remote expander
