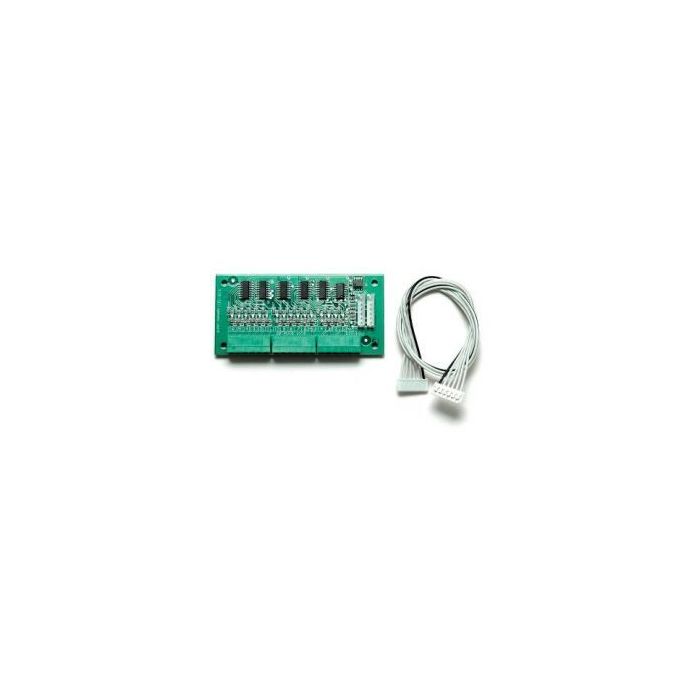

106-011 Ness D8 and D16 Output Expander
The 106-011 Ness Output Expander is an auxiliary output expansion board for Ness D8X and D16X alarm control panels. It connects through the AUX header and provides programmable open collector outputs for supported panel functions.
It suits installations where the panel needs additional low-voltage outputs for alarm, zone, system or automation signalling. By expanding the panel output capacity, it gives installers more flexibility when linking the alarm system to indicators, control inputs and other supported external devices.
Key Features
- Expands panel output capacity for more flexible site control
- Supports low-voltage switching tasks without replacing the main panel
- Helps map alarm and system events to external devices
- Keeps extra control points integrated through the D8X/D16X ecosystem
- Useful for larger installations that need more than the onboard outputs
- Catalogue Family:
- SYSTEM COMPONENTS
- Product Type:
- System Components
- Supported Panels:
- Ness D8X and D16X Deluxe control panels
- Output Type:
- Programmable open collector outputs
- Output Count:
- 16 programmable outputs
- Connection:
- AUX header
- Maximum Expanders:
- Up to 2 optional 106-011 output expanders
