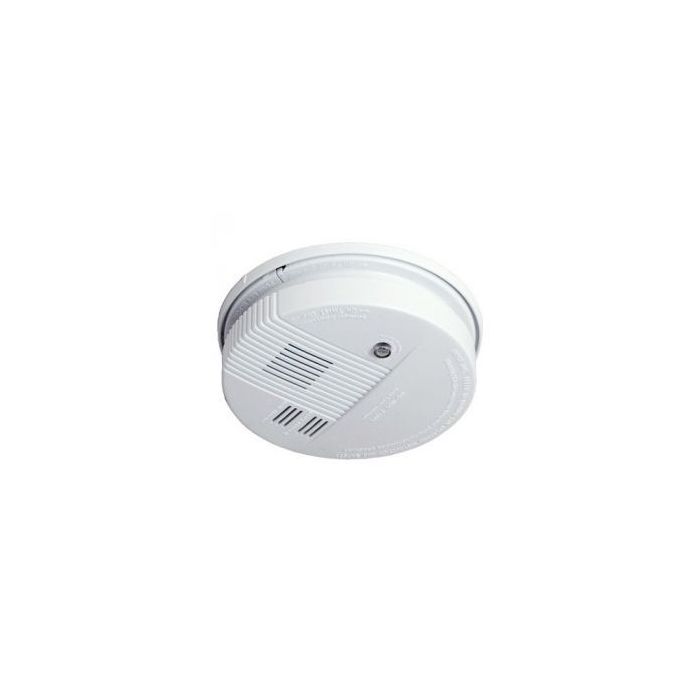

106-040 Ness RSM Radio Smoke Detector
The 106-040 Ness RSM Radio Smoke Detector is a photoelectric smoke detector with an onboard Ness radio transmitter. It provides a 304 MHz radio smoke alarm option for Ness control panels with wireless capability and is compatible with Ness radio receivers.
It suits Ness wireless alarm installations where smoke detection needs to report alarm, restoral, supervision and low-battery events through the radio receiver path. The detector uses a compact housing with a local piezo sounder, red alarm LED and test function for installation and maintenance checks.
Key Features
- Adds smoke-detection coverage to compatible Ness wireless systems
- Reports key detector states through the Ness radio receiver path
- Supports service checks with local test and indication functions
- Uses photoelectric sensing for a clearly defined smoke-alarm role
- Compact housing helps it fit neatly into residential or light commercial alarm layouts
- Catalogue Family:
- ALARM SENSOR
- Product Type:
- Alarm Sensor
- Detection Technology:
- Photoelectric smoke detection
- Dimensions:
- 133 mm diameter x 40 mm
- Compatibility:
- All Ness radio receivers
- Visual Indicator:
- Red alarm LED
- Audible Output:
- Piezo sounder
- Battery:
- 9 V alkaline
- Radio Frequency:
- 304 MHz
- Quiescent Current:
- Standby <15 uA, alarm <12 mA
