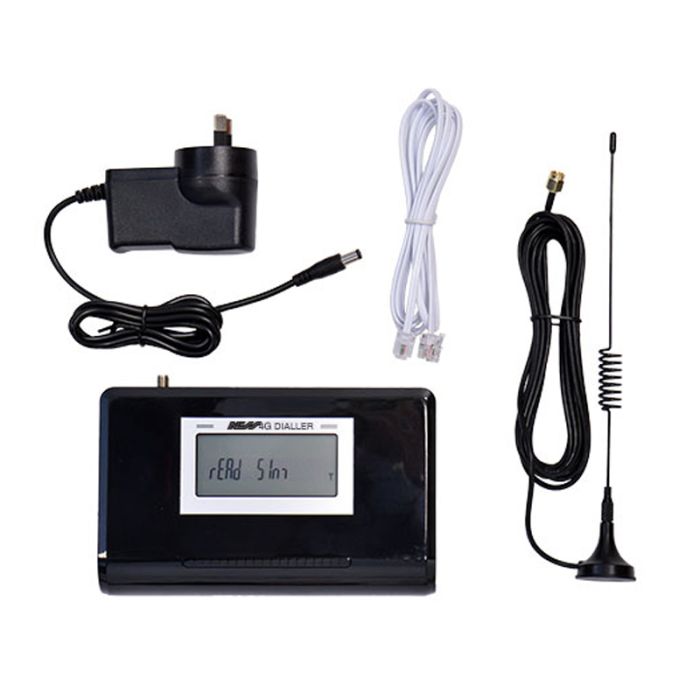

106-490NS Ness 4G Dialler Gen3 - No SIM
The 106-490NS Ness 4G Dialler Gen3 is the no-SIM version of the Ness 4G dialler. It provides a 4G pathway for alarm diallers, with LTE, WCDMA and GSM cellular compatibility plus digital audio and VoLTE support.
It suits alarm sites where an existing PSTN dialler needs a cellular communication path in the absence of a landline. The no-SIM variant is appropriate where the installer or site operator is selecting the SIM separately.
Key Features
- Provides a cellular pathway for alarm dialler communication
- Supports sites moving away from traditional landline reporting
- Keeps the no-SIM variant clear for installers choosing their own SIM path
- Includes internal battery backup context for short power interruptions
- Uses a compact external dialler format with magnetic-base antenna support
- Catalogue Family:
- BATTERY
- Product Type:
- Battery
- SIM Configuration:
- No SIM
- Cellular Compatibility:
- LTE FDD B1/B3/B5/B7/B8/B20/B28; LTE TDD B38/B40/B41; WCDMA B1/B5/B8; GSM B3/B8
- Audio Support:
- Digital Audio and VoLTE
- Operating Voltage:
- 12 V DC plug pack
- Battery Backup:
- Internal rechargeable battery, 2-3 hours max backup time
- Power Consumption:
- 25 mA standby, 300 mA communicating
- Antenna:
- 3 dB whip with magnetic base, 2.9 m cable
- Dimensions:
- 160 x 100 x 40 mm
- Weight:
- 370 g
- Operating Temperature:
- 0 degrees C to +50 degrees C
