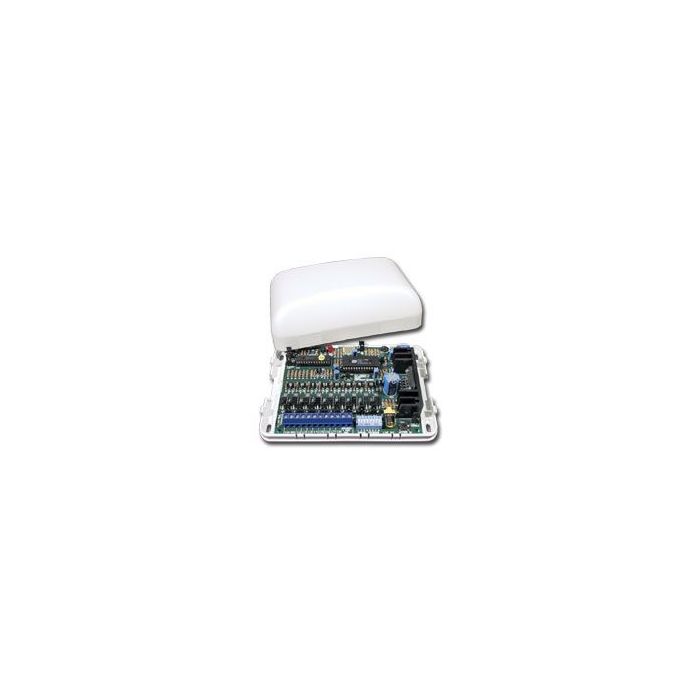

101-263 Ness ELK-124 Recordable Voice Annunciator - 8 Channel
The 101-263 is the Ness ELK-124 v2 recordable voice module, an enhanced 8-channel user-recordable voice module with up to eight minutes of recording time. It includes a built-in microphone, push-to-record button, line-level output and a 24 W audio amplifier for speakers.
This module is useful for security, access-control, telephone on-hold, paging and announcement applications where site-specific voice messages are required. Non-volatile memory, channel triggering and selectable playback behaviour allow messages to be recorded and reused without relying on a separate playback device.
Key Features
- Eight recordable channels support multiple site-specific voice announcements
- Non-volatile memory keeps recordings stored after power interruptions
- Built-in microphone and record button simplify message creation on site
- Line-level output supports connection to amplifiers and paging systems
- One-shot or continuous playback settings help match different alarm or announcement behaviours
- Catalogue Family:
- PIRS
- Model:
- ELK-124 v2
- Channels:
- 8 recordable voice and/or music channels
- Maximum Recording Time:
- 8 minutes total
- Operating Voltage:
- 11 - 14 V DC
- Current Draw:
- 1/4 to 1.8 A depending on volume and speaker load
- Trigger Inputs:
- 3 - 14 V DC at 30 mA
- Maximum Sound Level:
- 122 dB at 1 metre
- Maximum Speaker Loading:
- 4 ohms
- Enclosure Size:
- 165W x 111H x 50D mm
- Product Type:
- PIR Sensor
