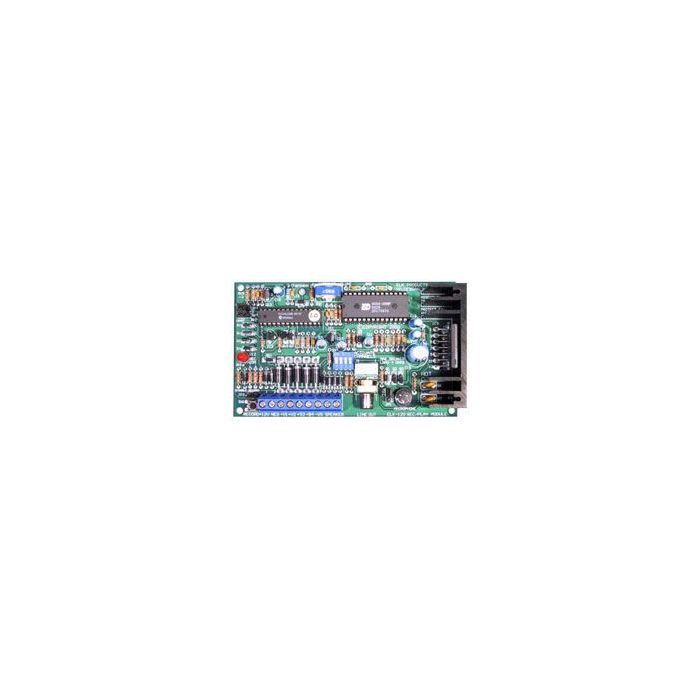

101-264 Ness ELK-120 Recordable Voice and Siren Driver
The 101-264 is the Ness ELK-120 v2 multi-channel recordable voice module and siren driver. It has four channels that can be configured as two siren and two recordable voice channels, or all four as recordable voice channels, with up to eight minutes of recording time stored in non-volatile memory.
This module suits alarm and access-control applications where siren tones and custom voice prompts need to be driven from the same board. The built-in condenser microphone, line-level output, PC sound-card interface connector and 24 W speaker amplifier support flexible message creation and output connection.
Key Features
- Configurable voice and siren modes allow the same board to suit different alarm applications
- Recordable voice channels support custom site messages and warnings
- Non-volatile memory retains recordings for repeated alarm or announcement use
- Line-level output allows connection to paging systems or external amplifiers
- Adjustable speaker volume helps match output to the connected speaker load
- Catalogue Family:
- PIRS
- Model:
- ELK-120 v2
- Channels:
- 4 channels, configurable as 2 siren and 2 voice or 4 voice
- Maximum Recording Time:
- 8 minutes total
- Siren Sounds:
- Classic Yelp Siren, Temporal Coded Horn, Industrial Horn
- Operating Voltage:
- 11 - 14 V DC
- Current Draw:
- 1/4 to 1.8 A
- Trigger Inputs:
- 9 - 14 V DC at 30 mA
- Maximum Sound Level:
- 122 dB at 1 metre
- Maximum Speaker Loading:
- 4 ohms
- Size:
- 76 x 127 x 32 mm
- Product Type:
- PIR Sensor
