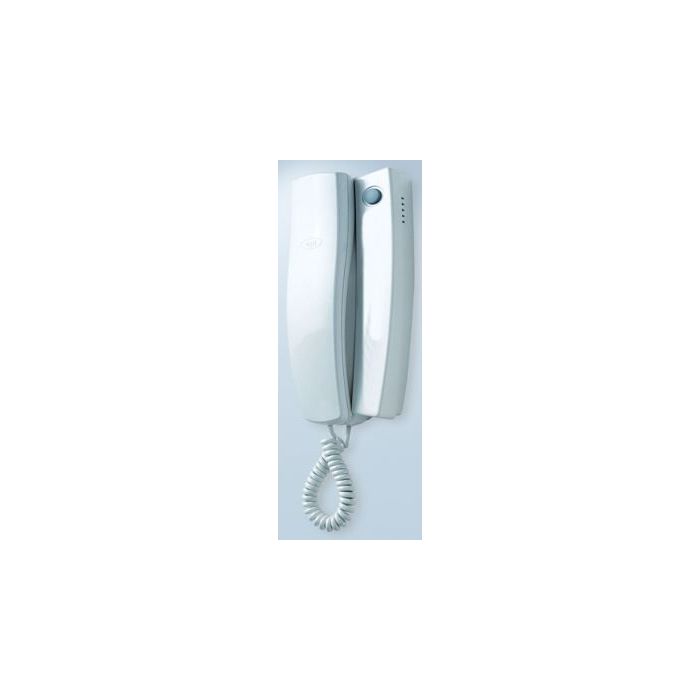

YC251 BPT Linea Universal Wall-Mounted Audio Handset
The YC251 is a BPT Linea universal wall-mounted audio handset with door lock release control. It is compatible with audio entry systems using either electronic call or buzzer call signalling and can accommodate the optional YP1 auxiliary services button.
The handset includes separate potentiometers for adjusting the loudspeaker and microphone signals. Its six terminals provide connections for the microphone, door lock release, buzzer call, ground, loudspeaker and electronic call.
Key Features
- Supports replacement work across multiple listed handset wiring arrangements.
- Wall-mounted design gives a straightforward fit for internal audio entry points.
- Door release control keeps everyday visitor access operation at the handset.
- Electronic and buzzer call support helps match common analogue call arrangements.
- Installer-adjustable audio controls assist with final setup and call clarity.
- Catalogue Family:
- INTERCOM
- Model:
- YC251
- Product Type:
- Intercom
- System Type:
- Audio entry control with electronic or buzzer call
- Mounting:
- Wall Mount
- Door Release:
- Door lock release control
- Adjustments:
- Loudspeaker signal and microphone signal potentiometers
- Terminals:
- Microphone; door lock release; buzzer call; ground; loudspeaker; electronic call
- Sw1 Jumper:
- Microphone ground common or separate setting
