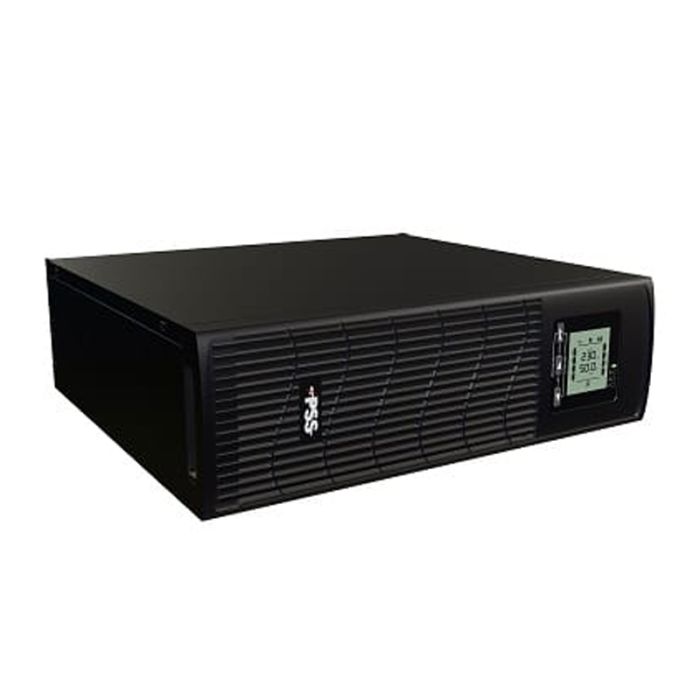

XL1000 XL Plus Line Interactive UPS - 1000VA 800W
The XL1000 is a pure sine wave line-interactive UPS rated at 1000VA / 800W. It features LED and LCD status displays, 230V input, pure sine wave output, 2-6ms typical transfer time, sealed lead acid batteries, USB communication and UPS Smart software.
The UPS is designed for industrial and security power applications including roller doors, shutters, motors, CCTV systems, inductive loads and medical equipment. It supports rack or tower installation and is compatible with EBXL runtime expansion modules for extended backup time.
Key Features
- Provides pure sine wave UPS backup for sensitive and inductive loads.
- Supports rack or tower deployment in varied equipment-room layouts.

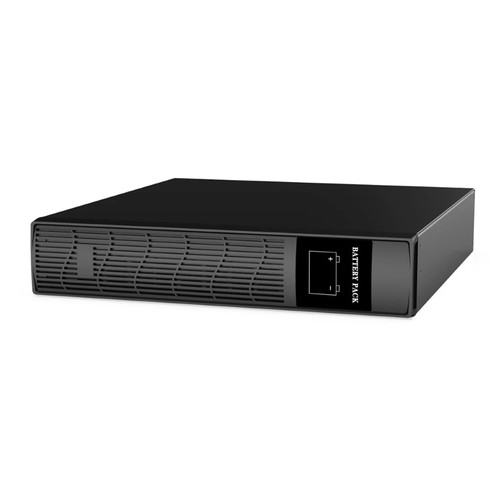

- Allows runtime expansion through the EBXL module family.
- Gives local status visibility through combined LED and LCD indication.
- Helps protect security and industrial equipment from brief power interruptions.
- Catalogue Family:
- UPS
- Model:
- XL+1000
- Capacity:
- 1000VA / 800W
- Input Voltage:
- 230V
- Output Voltage Regulation:
- 230Vac +/- 10%
- Output Sockets:
- 2 x AUS Standard 10A and 1 x IEC 10A
- Waveform:
- Pure sine wave
- Transfer Time:
- Typical 2-6ms
- Battery Configuration:
- 2 x 12V 9Ah
- Dimensions (H X W X D) / Weight:
- 440 x 338 x 88mm (2RU) / 12.2kg
- Product Type:
- UPS
