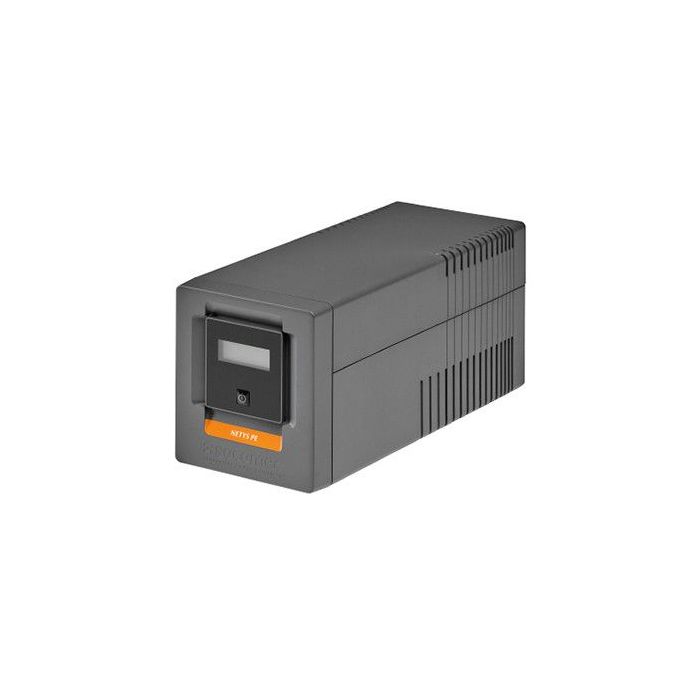

NPE-1000-LCD Socomec NETYS PE 1000 VA Tower LCD UPS
The NPE-1000-LCD is a Socomec NETYS PE 1000 VA single-phase tower UPS with an LCD/LED control panel. It features line-interactive technology with Automatic Voltage Regulation (AVR), a step wave output and USB communication.
This UPS provides 1000 VA / 600 W capacity with a 230 V input and output, automatic 50/60 Hz frequency selection and Local View software support via the USB interface. The NETYS PE range also includes integrated NTP data line protection for LAN/ADSL connections.
Key Features
- Line-interactive UPS with Automatic Voltage Regulation (AVR).
- LCD/LED control panel for operating status indication.
- 1000 VA / 600 W power capacity.
- USB communication interface with Local View software support.
- Tower cabinet with integrated NTP data line protection.
- Catalogue Family:
- UPS
- Product Type:
- UPS
- Model:
- NPE-1000-LCD
- Apparent Power:
- 1000 VA
- Active Power:
- 600 W
- Input/Output:
- 1/1
- Rated Input Voltage:
- 230 V
- Input Voltage Tolerance:
- 170-280 V
- Rated Frequency:
- 50/60 Hz with automatic selection
- Output Voltage In Battery Mode:
- 230 V +/-10%
- Output Waveform:
- Step wave
- Backup Time Stated:
- 45 min
- Interface:
- USB
- Dimensions:
- 145 x 345 x 165 mm
- Weight:
- 9.7 kg
- Standards / Declarations:
- IEC/EN 62040-2, AS 62040.2; CE, RCM (E2376)
