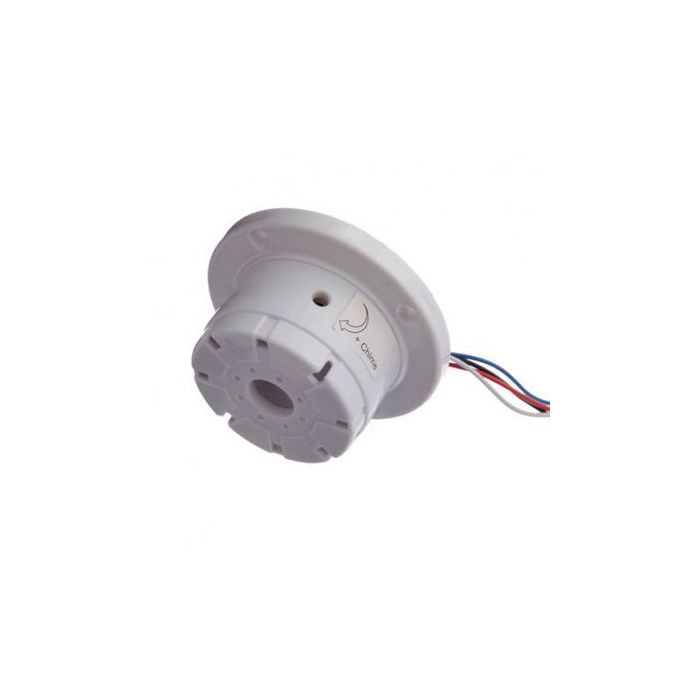

WP10 Top Hat Screamer and Chime - Volume Control
The WP10 is a surface-mounted top hat screamer and chime for internal alarm applications. It operates from a 12 VDC supply with a current draw of 10-90 mA and combines siren and chime functions in a single unit. The sounder features a ding dong chime, adjustable chime volume control, four-wire fly leads, and polarity reversal protection.
The combined screamer and chime is designed to provide audible alarm and entry notification functions for compatible security and alarm systems. Its surface-mounted design is intended for internal installations requiring both siren and chime operation.
Key Features
- Combines siren and chime functions in a single surface-mounted unit.
- Operates from a 12 VDC power supply.
- Adjustable chime volume control allows sound level adjustment.
- Four-wire fly leads simplify connection of siren and chime functions.
- Polarity reversal protection helps protect against incorrect wiring.
- Catalogue Family:
- POWER SUPPLY
- Model:
- WP10
- Product Type:
- Power Supply
- IP Rating:
- Internal use only
- Power:
- 12VDC 10 to 90 mA
- Operation:
- Chime and siren
- Wiring:
- 4 wire fly leads
- Chime:
- Ding dong sound with volume control
- Siren Volume:
- 75 to 105 dB/m
- Protection:
- Polarity reversal protection
