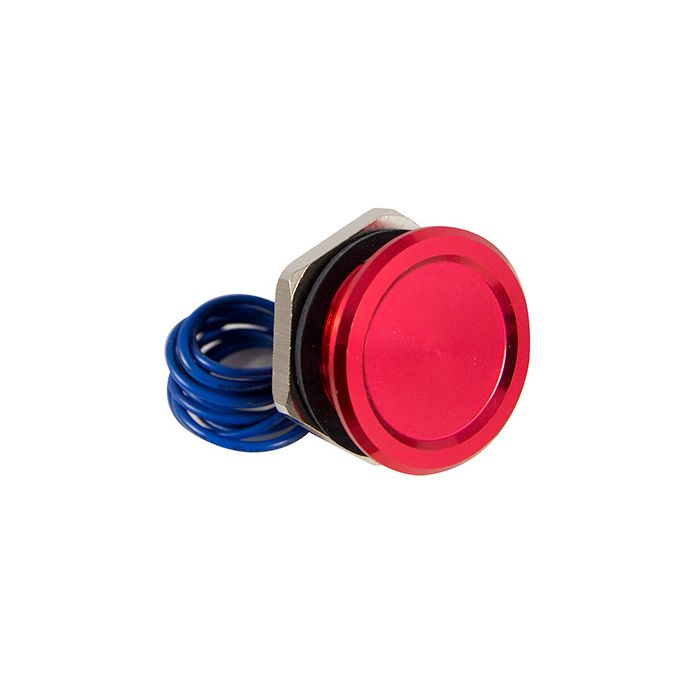

ALLENPIEZORED Red Piezo Touch Button NO Contacts
The ALLENPIEZORED is a red piezo touch button with momentary normally open (NO) pulse operation for hardwired access-control applications. It features a maximum switch rating of 200 mA at 24 VAC/DC, AWG 26 wiring, and a 300 mm wire length.
The touch button is suitable for installations requiring a compact, touch-sensitive control for door release and other access-control functions. It features an aluminium alloy body and momentary NO pulse operation.
Key Features
- Red piezo touch button with momentary NO pulse operation.
- Maximum switch rating of 200 mA at 24 VAC/DC.
- Aluminium alloy body construction.
- AWG 26 wiring with a 300 mm wire length.
- Suitable for hardwired access-control and door-release applications.
- Catalogue Family:
- ALARM SWITCH
- Product Type:
- Alarm Switch
- Button Colour:
- Red
- Switch Operation:
- Momentary NO pulse
- Maximum Switch Rating:
- 200mA 24VAC/DC
- Wiring:
- AWG 26, 300 mm length
- Operating Temperature:
- -40 deg C to +75 deg C
- Body Material:
- Aluminium alloy
