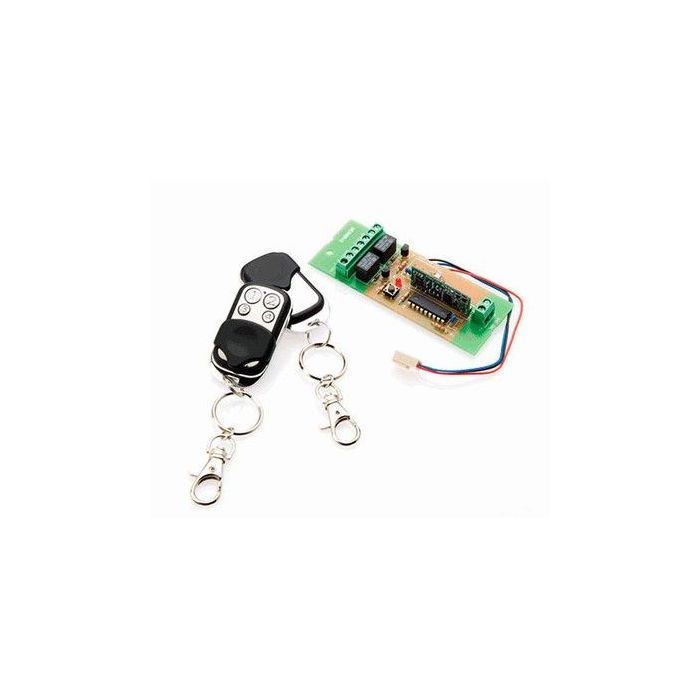

WE800EV2KIT RF Arming Kit with Receiver and Two 4-Button Fobs
The WE800EV2KIT is a Bosch RF arming kit supplied with a WE800EV2 433 MHz receiver and two 4-button fobs. It provides remote ON/OFF control for compatible Solution alarm panels and includes code-hopping RF security and two onboard programmable relays.
This kit is designed for installations requiring remote arm and disarm control with additional relay-operated functions. The receiver supports up to 21 fobs, while the two supplied fobs are pre-learnt to the receiver with both relays configured for momentary operation.
Key Features
- Includes a WE800EV2 433 MHz receiver and two 4-button remote fobs.
- Provides remote arm and disarm control for compatible Bosch Solution alarm panels.
- Includes two programmable SPDT relay outputs for additional control functions.
- Uses code-hopping RF security to protect wireless transmissions.
- Supports up to 21 fobs with momentary or toggle relay operation.
- Catalogue Family:
- BOSCH 3000
- Product Type:
- Bosch 3000
- Kit Contents:

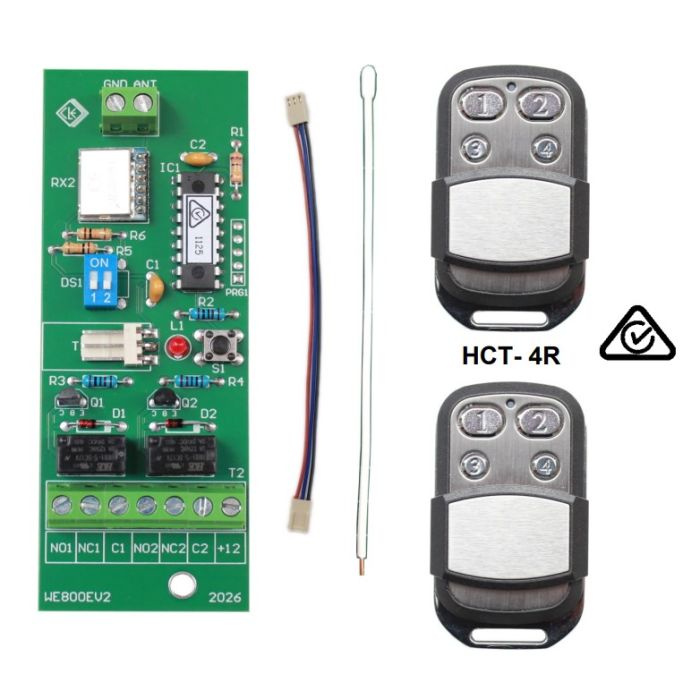

- WE800EV2 433 MHz receiver with 2 x 4-button fobs
- Receiver Operating Voltage:
- 9 VDC to 15 VDC
- Receiver Current Consumption:
- 7 mA standby; 45 mA with both relays operating
- Relay Rating:
- SPDT 1 Amp maximum carry at 12 VDC
- Operating Frequency:
- 433.92 MHz
- Receiver Type:
- Superheterodyne AM ASK
- Fob Storage:
- EEPROM, maximum 21 fobs
- Fob Battery:
- 12 VDC 27A battery
