B810DLX-KIT Bosch RADION Deluxe Keyfob Kit - B810 Receiver and 2 x 4 Button Remotes

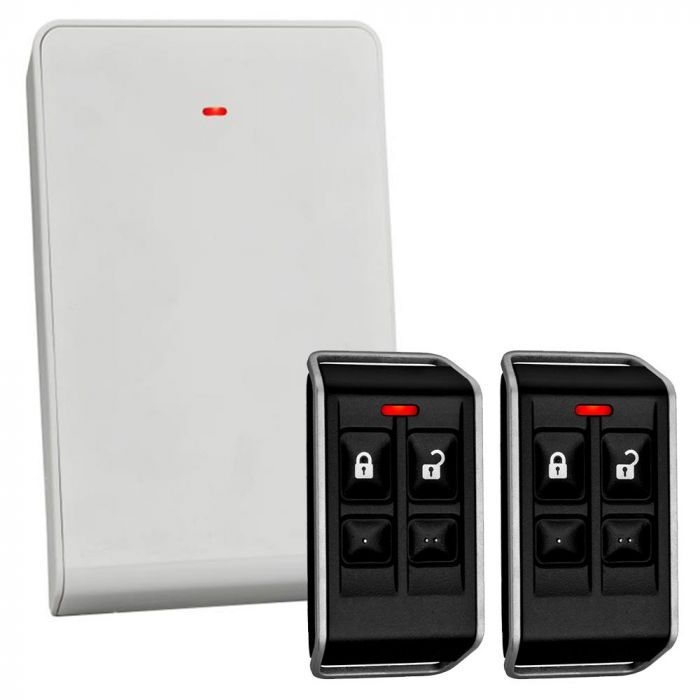

The B810DLX-KIT is a Bosch RADION Deluxe Keyfob Kit supplied with a B810 wireless receiver and 2 x RFKF-FB 4-button remotes. The B810 receiver connects RADION wireless peripherals to supported Bosch control panels via the SDI2 bus connection, while the four-button keyfobs are designed for remote arming and disarming with programmable option buttons.
Specified for 2000 and 3000 systems only, this kit suits Bosch security installations that need wireless keyfob control added through the RADION platform. Receiver features such as rotary addressing, cover and wall tamper protection, persistent RFID and configuration memory, external LED indication and radio-frequency interference reporting support a cleaner installation and easier ongoing diagnostics.
Key Features
- Adds remote arm and disarm control for compatible Bosch 2000 and 3000 systems
- Connects RADION wireless peripherals to the control panel through the SDI2 bus
- Supports practical setup with rotary receiver addressing and RF ID programming workflows
- Improves service visibility through external LED status indication and receiver feedback
- Helps protect the installed receiver with cover tamper and wall tamper signalling
- Catalogue Family:
- CARDS
- Model:
- B810DLX-KIT
- Range:
- RADION
- Kit Type:
- Deluxe keyfob kit
- Included Components:
- B810 wireless receiver; 2 x RFKF-FB 4-button remotes
- Supported Systems:
- 2000 and 3000 only
- Receiver Connection:
- SDI2 bus connection
- Receiver Power:
- 10-14 VDC, 12 VDC nominal
- Receiver Current Draw:
- 70 mA maximum
- Receiver Dimensions:
- 209.60 mm x 139.70 mm x 31.80 mm
- Receiver Frequency:
- 433.42 MHz
- Receiver Wiring Distance:
- Maximum 243 m from the control panel
- Receiver Wiring Gauge:
- 0.65 mm (22 AWG) to 2.0 mm (18 AWG) maximum
- Receiver Operating Environment:
- 0°C to +49°C (+32°F to +120°F)
- Receiver Relative Humidity:
- Up to 93% non-condensing
- Keyfob Functions:
- Remote arm/disarm, panic alarm, LED indicator and programmable option buttons
- Keyfob Dimensions:
- 63.70 mm x 35.50 mm x 13.00 mm
- Keyfob Battery:
- One CR2032 lithium battery, 3 VDC
- Keyfob Battery Life:
- Up to 5 years
- Keyfob Operating Temperature:
- -10°C to +49°C (+14°F to +120°F)
- Keyfob Relative Humidity:
- 0% to 93% non-condensing
- Keyfob Frequency:
- 433.42 MHz
- Product Type:
- Card / Fob
