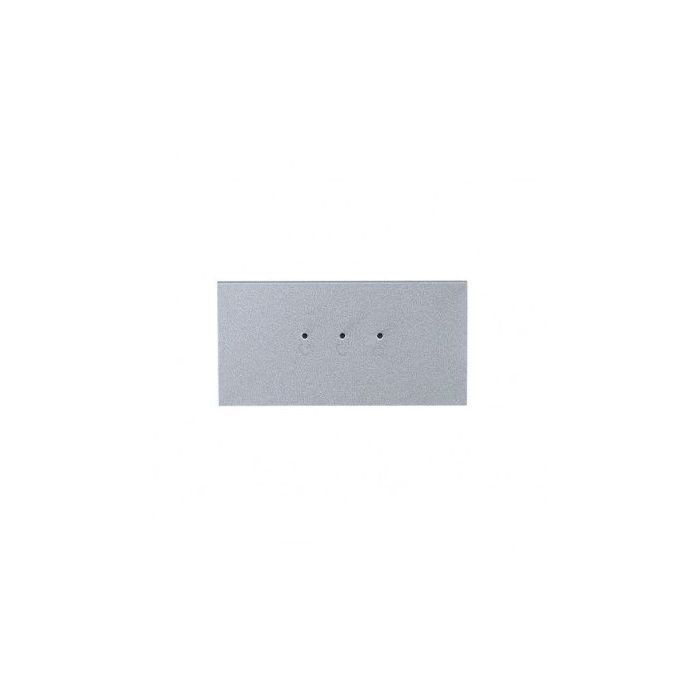

VTO4202F-ML-S2 Indicator Module for VTO4202
The VTO4202F-ML-S2 is a Dahua VTO420XF-X Series indicator module for VTO4202 modular intercom door stations. It features aluminium construction, a 5 VDC power supply, and flush-mount or surface-mount installation.
The module has IP65 and IK07 protection ratings. The IP65 rating applies when silicone sealant is used during installation.
Key Features
- Adds a defined function to a Dahua VTO4202 modular door station.
- Supports flush or surface mounting to suit different entry-panel layouts.
- Uses the module system power arrangement for tidy station integration.
- Helps installers build a station around only the required resident or access functions.
- Keeps module selection clear for VTO4202 station planning.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-VTO4202F-ML
- Product Type:
- Intercom
- System:
- DHI-VTO420XF-X Series module
- Material:
- Aluminium Alloy
- Colour:
- Silver
- Power Supply:
- 5 VDC provided by other modules
- Power Output:
- 5 VDC provides power for other modules
- Installation:
- Flush mount; surface mount
- Dimensions:
- 100 x 49.90 x 28.50 mm
- Protection:
- IK07; IP65 when installed with silicone sealant
- Operating Temperature:
- -20 C to +60 C
- Operating Humidity:
- 10%-90% RH
- Power Consumption:
- Up to 2 W
