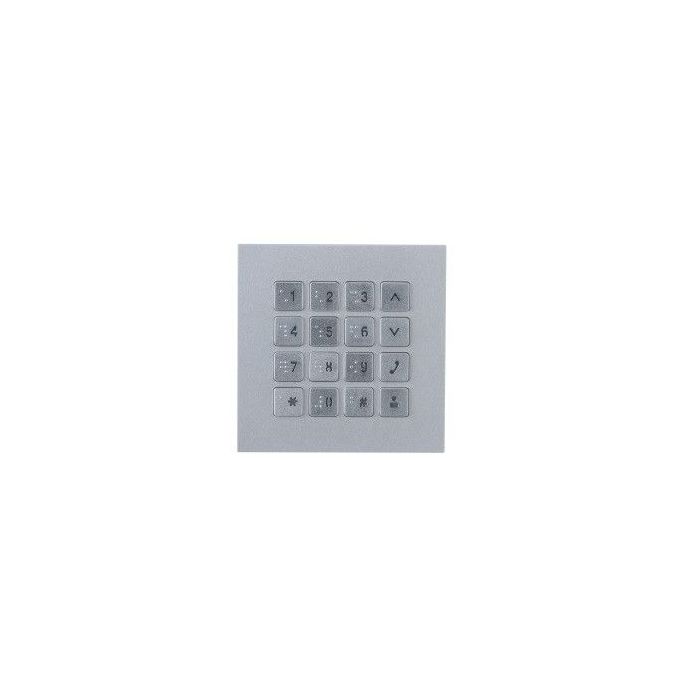

VTO4202F-MK-S2 Keypad Module for VTO4202
The VTO4202F-MK-S2 is a Dahua VTO420XF-X Series keypad module for VTO4202 modular intercom door stations. It features aluminium construction, a 5 VDC power supply, and flush-mount or surface-mount installation.
The module has IP65 and IK07 protection ratings. The IP65 rating applies when silicone sealant is used during installation.
Key Features
- Adds a defined function to a Dahua VTO4202 modular door station.
- Supports flush or surface mounting to suit different entry-panel layouts.
- Uses the module system power arrangement for tidy station integration.
- Helps installers build a station around only the required resident or access functions.
- Keeps module selection clear for VTO4202 station planning.
- Catalogue Family:
- INTERCOM
- Model:
- DHI-VTO4202F-MK
- Product Type:
- Intercom
- System:
- DHI-VTO420XF-X Series module
- Button Type:
- Mechanical
- Material:
- Metal
- Colour:
- Black
- Power Supply:
- 5 VDC provided by other modules
- Power Output:
- 5 VDC provides power for other modules
- Installation:
- Flush mount; surface mount
- Dimensions:
- 100 x 100 x 31 mm
- Protection:
- IK07; IP65 when installed with silicone sealant
- Operating Temperature:
- -20 C to +60 C
- Operating Humidity:
- 10%-90% RH
- Power Consumption:
- Up to 0.5 W
- Series:
- SIP2.0
- Technology:
- IP/2-WIRE
- Modular / All In One:
- MODULAR DOOR STATION
- Device Type:
- KEYPAD MODULE
- Solution:
- APARTMENT/RESIDENTIAL
- Display Size:
- NO DISPLAY
- Camera Resolution:
- NO CAMERA
- WDR:
- NO CAMERA/WITHOUT WDR
- Mounting:
- SURFACE/RECESSED MOUNT
- IP Rating:
- IP65
- IK Rating:
- IK07
- Teleloop (Hearing Aid Loop):
- WITHOUT TELELOOP
- IP System Compression:
- NON IP DEVICE
- Additional Camera Input:
- NO ADDITIONAL CAMERA INPUT
- Features 1:
- SUB DOOR STATION
- Features 2:
- NO WIEGAND
- Power:
- 5VDC
