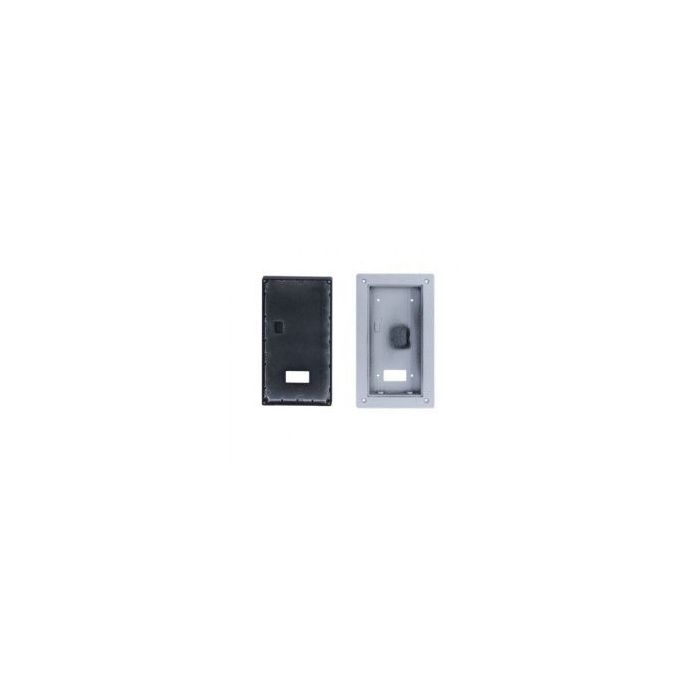

VTM116 Flush Box for VTO622 and VTO322 Series
The VTM116 is a Dahua flush box accessory for VTO622 and VTO322 series door stations. It uses ADC12 material, with a 138.0 x 240.0 x 35.0 mm front dimension and a 120.8 x 222.7 x 33.0 mm rear body.
It is intended for flush-mounted intercom installations where the door station needs a prepared wall opening and a cleaner finish than surface mounting. The wall opening dimensions help installers plan the cut-out before fitting the compatible Dahua station.
Key Features
- Flush-box format supports a cleaner door station finish
- Confirmed wall opening dimensions help reduce installation guesswork
- ADC12 material gives the accessory a defined construction basis
- Designed around VTO622 and VTO322 series door station use cases
- Compact rear depth helps suit prepared wall recess installations
- Catalogue Family:
- INTERCOM
- Model:
- VTM116
- Material:
- ADC12
- Front Dimensions:
- 138.0 x 240.0 x 35.0 mm
- Rear Dimensions:
- 120.8 x 222.7 x 33.0 mm
- Wall Opening Dimensions:
- 120.8 x 222.7 x 33.0 mm
- Installation Type:
- Flush box
- Product Type:
- Intercom
