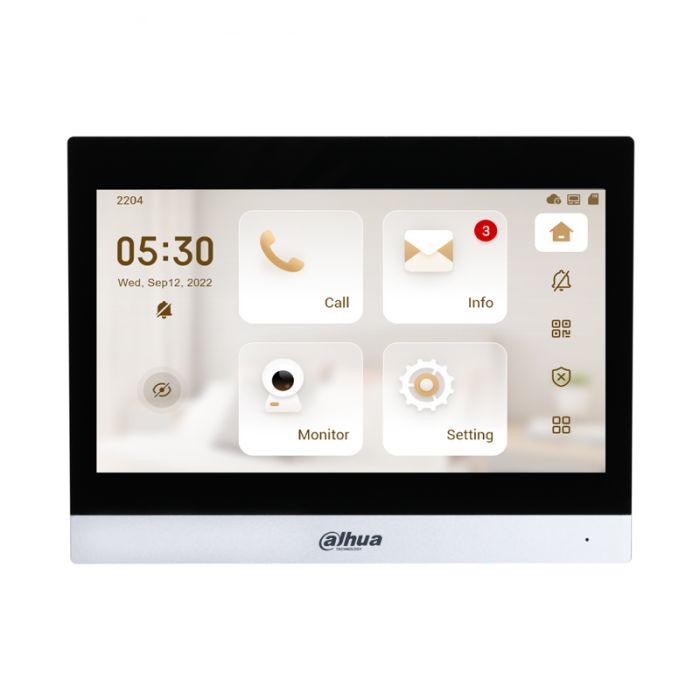

VTH8642KMS-W 2-wire IP and Wi-Fi Indoor Monitor - 10 Inch
The VTH8642KMS-W is a 2-wire IP and Wi-Fi indoor monitor with a 10 inch capacitive touchscreen and 1024 x 600 resolution. It uses a metal casing, embedded Linux OS, 2-wire digital communication, Wi-Fi connectivity and H.265/H.264 video decoding.
It is built for indoor video intercom installations where a larger monitor and integrated voice calling are required. The monitor can display door-station camera images during calls, support 6 wired alarm zones, send messages to the management centre and use configurable do-not-disturb mode.
Key Features
- Gives users a larger 10 inch screen for call viewing and intercom control.
- Supports both 2-wire and Wi-Fi system layouts for flexible indoor deployment.
- Improves call usability with speaker, microphone and two-way audio support.
- Helps integrate alarm zones and management-centre messaging in one indoor endpoint.
- Uses a metal casing for a more robust indoor monitor finish.
- Catalogue Family:
- INTERCOM
- Display:
- 10 inch TFT capacitive touchscreen
- Screen Resolution:
- 1024 x 600
- Communication Mode:
- Digital 2-wire
- Wi-Fi:
- IEEE 802.11b/g/n; 2412-2472 MHz
- Storage:
- Micro SD card up to 64 GB
- Alarm Input:
- 6
- Alarm Output:
- 1
- Power Supply:
- 48 VDC 1.25 A
- Installation:
- Surface mount
- Dimensions:
- 250 mm x 190 mm x 23.5 mm
- Operating Temperature:
- -10 °C to +55 °C
- Product Type:
- Intercom
