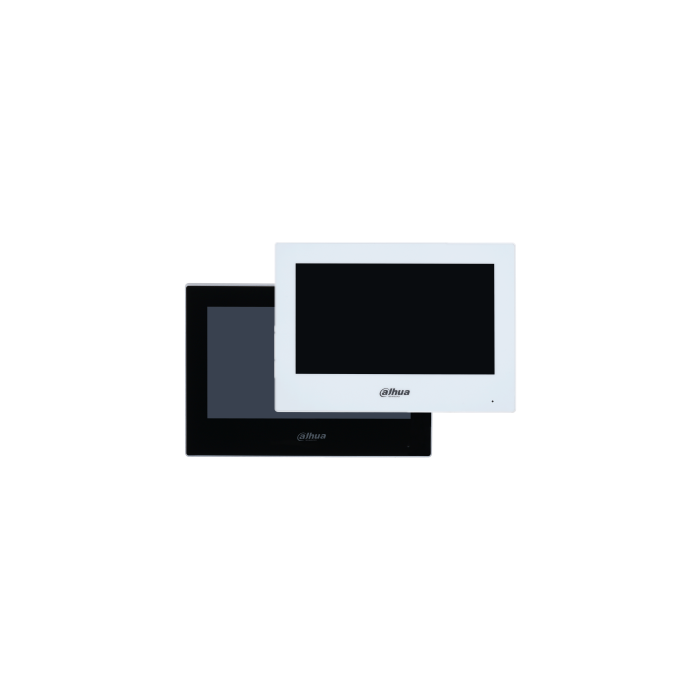

VTH2621GW-P IP Indoor Monitor - 7 Inch White
The VTH2621GW-P is a white IP indoor monitor with a 7 inch TFT capacitive touchscreen and 1024 x 600 resolution. It uses embedded Linux operation, standard PoE, H.265/H.264 video coding and a PC + ABS casing for Dahua digital intercom installations.
It supports outdoor station and IPC monitoring from a compact surface-mounted indoor screen. With 6 alarm inputs, 1 alarm output, SOS support, information release and configurable do-not-disturb mode, it suits villa and apartment intercom systems that need a practical touchscreen endpoint.
Key Features
- Provides a clear touchscreen endpoint for calls, monitoring and intercom control.
- Supports alarm and SOS integration for a more complete indoor station setup.
- Uses standard PoE to reduce separate power-cabling requirements where supported.
- Helps residents view door station and IPC video from a dedicated indoor monitor.
- Balances compact installation with a slim surface-mounted housing.
- Catalogue Family:
- INTERCOM
- Display:
- 7 INCH TFT CAPACITIVE TOUCHSCREEN
- Screen Resolution:
- 1024 X 600
- Colour:
- WHITE
- Network:
- One 10/100 Mbps Ethernet port
- Alarm Input:
- 6
- Alarm Output:
- 1
- Power Supply:
- 12 VDC 1 A; STANDARD POE 36-57 V 0.35 A
- Installation:
- Surface mount
- Dimensions:
- 189.6 mm x 134.6 mm x 26.0 mm
- Operating Temperature:
- -10 °C TO +55 °C
- Product Type:
- INTERCOM
- Series:
- SIP2.0
- Technology:
- IP
- Device Type:
- MONITOR
- Solution:
- APARTMENT/RESIDENTIAL
- Display Size:
- 7 INCH
- Display/Button Type:
- CAPACITIVE TOUCHSCREEN
- Camera Resolution:
- NO CAMERA
- WDR:
- NO CAMERA/WITHOUT WDR
- Material:
- PLASTIC
- Mounting:
- SURFACE MOUNT
- IP Rating:
- NO IP RATING
- IK Rating:
- NO IK RATING
- Teleloop (Hearing Aid Loop):
- WITHOUT TELELOOP
- IP System Compression:
- H.264 & H.265
- Output:
- ALARM OUTPUT(DRY CONTACT)
- Input:
- ALARM INPUT
- Additional Camera Input:
- NO ADDITIONAL CAMERA INPUT
- Features 2:
- NO WIEGAND
- Max SD Card Supported:
- NOT SUPPORT SD CARD
- Mounting Box:
- COME WITH WALL BRACKET
- Power:
- 12VDC/POE(48V)
