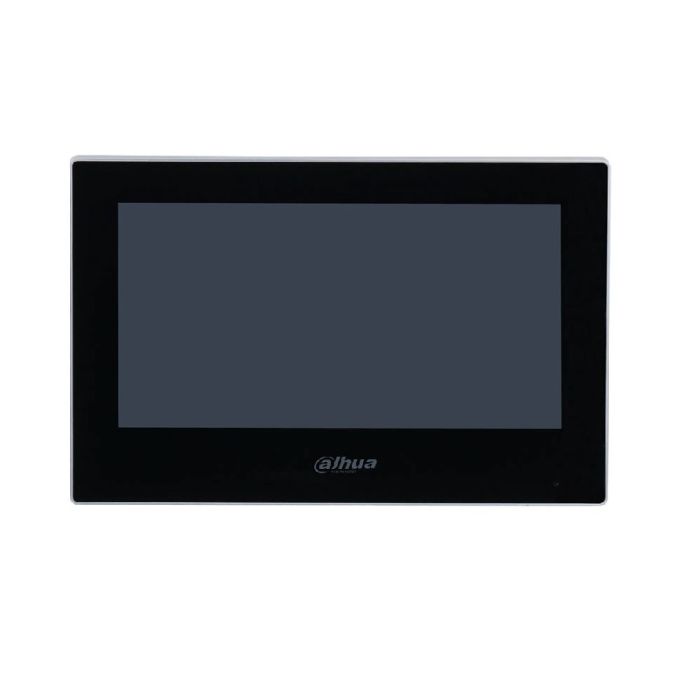

VTH2621G-P IP Indoor Monitor - 7 Inch
The VTH2621G-P is an IP indoor monitor for Dahua video intercom systems with a 7 inch TFT capacitive touchscreen, 1024 x 600 resolution, embedded Linux operation, standard PoE and H.265/H.264 video coding.
It is designed for indoor intercom monitoring with outdoor station and IPC monitor support, 6 alarm inputs, 1 alarm output and full digital communication. The surface-mount format and compact body suit residential and apartment installations where a dedicated intercom screen is required.
Key Features
- Gives users a clear 7 inch touchscreen interface for video intercom operation.
- Supports practical site integration with alarm input, alarm output and door-bell functions.
- Helps simplify power and network planning through standard PoE support.
- Allows indoor monitoring of outdoor stations and IPCs from a dedicated wall display.
- Keeps the installation compact with a surface-mount body and slim profile.
- Catalogue Family:
- INTERCOM
- Display:
- 7 inch TFT capacitive touchscreen
- Screen Resolution:
- 1024 x 600
- Network:
- One 10/100 Mbps Ethernet port
- Alarm Input:
- 6
- Alarm Output:
- 1
- Power Supply:
- 12 VDC 1 A; standard PoE 36-57 V 0.35 A
- Installation:
- Surface mount
- Dimensions:
- 189.6 mm x 134.6 mm x 26.0 mm
- Operating Temperature:
- -10 °C to +55 °C
- Power Consumption:
- Standby 2 W or less; working 6 W or less
- Product Type:
- Intercom
