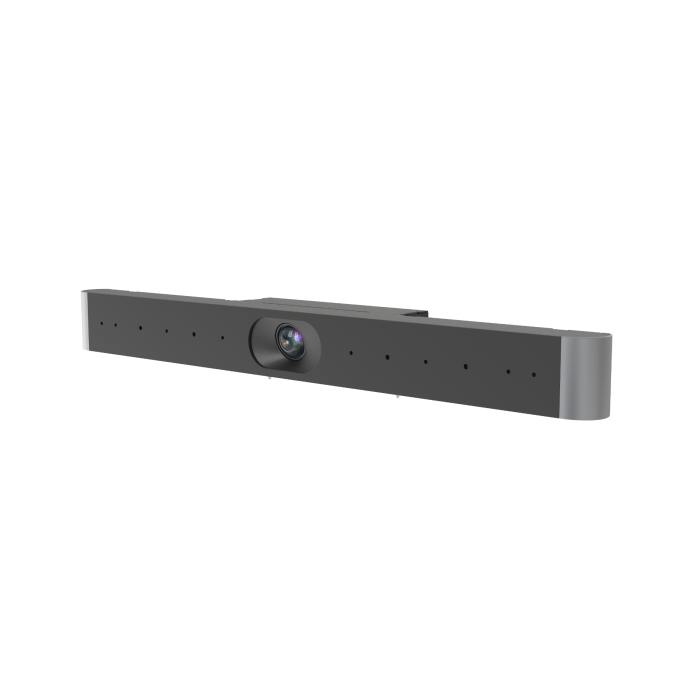

UNVHB-CA08E Uniview HB-CA08E 4K Camera Microphone Module
The UNVHB-CA08E is a Uniview pluggable 4K camera and microphone module for conference and collaboration displays. It provides 8MP camera resolution on Windows and Android, a 112.7-degree diagonal field of view, distortion of no more than 2%, and an omni-directional 8-microphone array.
It is intended for meeting spaces where wide-room capture, voice pickup and display-integrated collaboration are required. Auto framing, speaker tracking and multi-window close-up support help the module keep participants visible and usable during remote meetings.
Key Features
- Adds camera and microphone capability to supported Uniview collaboration displays.
- Wide field of view helps capture meeting-room participants in a single view.
- Eight-microphone array supports clearer pickup across the room.
- Auto framing and speaker tracking reduce manual adjustment during meetings.
- Pluggable module format supports practical use where camera privacy and setup flexibility matter.
- Catalogue Family:
- ACCESSORIES
- Model:
- HB-CA08E
- Camera Resolution:
- 8MP on Windows and Android
- Field of View:
- 112.7 degrees diagonal
- Distortion:
- <= 2%
- Microphone:
- Omni-directional 8-microphone array
- Pickup Angle:
- 180 degrees
- Pickup Distance:
- 8 m
- Supported Functions:
- Auto framing, speaker tracking, multi-window close-up
- Dimensions:
- 359 x 50 x 46 mm
- Product Type:
- Accessories
