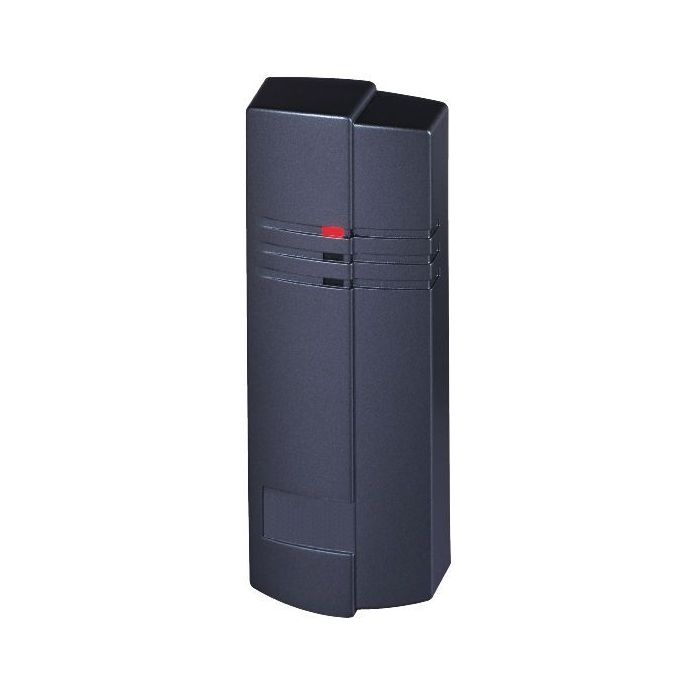

SMART6000 Mifare Reader
The SMART6000 is a Mifare reader available as a 26/34/40 bit CNS reader and can also be provided as a customer-secured sector reader if required. It features standard 26/32/34 bit Wiegand output and a compact hardwired reader design.
The reader operates from a 4.5-15 VDC supply with a current consumption of 30-80 mA. It has dimensions of 120 x 45 x 22 mm, weighs 68 g and includes a wiring interface for Wiegand data, LED and buzzer connections.
Key Features
- Mifare reader with 26/34/40 bit CNS reader option.
- Standard 26/32/34 bit Wiegand output.
- Customer-secured sector reader available if required.
- Compact reader measuring 120 x 45 x 22 mm.
- Wiring interface for Wiegand data, LED and buzzer connections.
- Catalogue Family:
- READERS
- Product Type:
- Readers
- Power Supply:
- 4.5-15 VDC, 30-80 mA
- Weight:
- 68 g
- Dimensions:
- 120 x 45 x 22 mm (H x W x D)
- Environmental:
- -10 deg C to 55 deg C, 20-90% humidity
- Contact Output:
- Standard 26/32/34 bit Wiegand output
- Reader Options:
- 26/34/40 bit CNS reader; customer-secured sector reader if required
