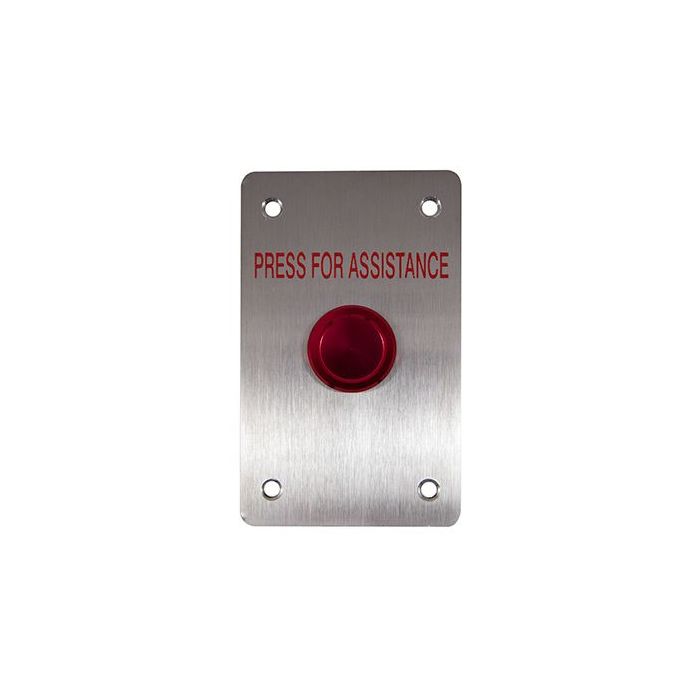

SMART0078PFA Smart Custodial Stainless Steel GPO Plate Red Piezo Touch Button - Press For Assistance
The SMART0078PFA is a custodial stainless steel GPO plate fitted with a red piezo touch button and Press For Assistance text for access-control signalling. It features momentary NO pulse operation, a maximum switch rating of 200mA at 24VAC/DC, and IP68/IP69K protection for the piezo switch.
The low-profile piezo touch actuator is suitable for door-side exit, duress and assistance applications requiring a sealed touch interface.
Key Features
- Stainless steel GPO plate with engraved Press For Assistance text.
- Red piezo touch button with low-profile, sealed operation.
- Momentary NO pulse output with a maximum rating of 200mA at 24VAC/DC.
- IP68/IP69K-rated piezo switch for demanding environments.
- 50 million cycle operating life, aluminium alloy body, and 300mm wiring length.
- Button Color:
- Red
- Plate Style:
- Standard
- Plate Material:
- Stainless Steel
- Text Engraved:
- Press For Assistance
- Product Type:
- Alarm Switch
