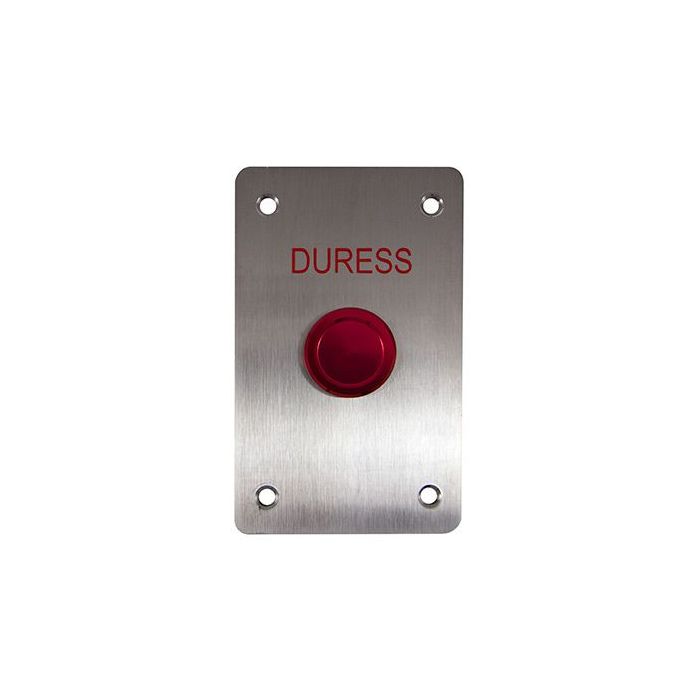

SMART0078DUR Smart Custodial Stainless Steel GPO Plate Red Piezo Touch Button - Duress
The SMART0078DUR is a custodial stainless steel GPO plate fitted with a red piezo touch button engraved with "Duress" for access-control signalling. The piezo switch features momentary NO pulse operation, a maximum switch rating of 200mA at 24VAC/DC, and IP68/IP69K protection.
Suitable for door-side exit, duress and assistance points, the unit features a low-profile touch actuator, an aluminium alloy switch body, a 50 million cycle operating life, and a 300mm wiring length.
Key Features
- Stainless steel GPO plate with red piezo touch button and "Duress" engraving.
- Momentary NO pulse operation with a 200mA maximum switch rating at 24VAC/DC.
- IP68/IP69K rated piezo switch for sealed operation.
- Low-profile touch actuator with an aluminium alloy switch body.
- 50 million cycle operating life with 300mm wiring length.
- Button Color:
- Red
- Plate Style:
- Standard
- Plate Material:
- Stainless Steel
- Text Engraved:
- Duress
- Product Type:
- Alarm Switch
