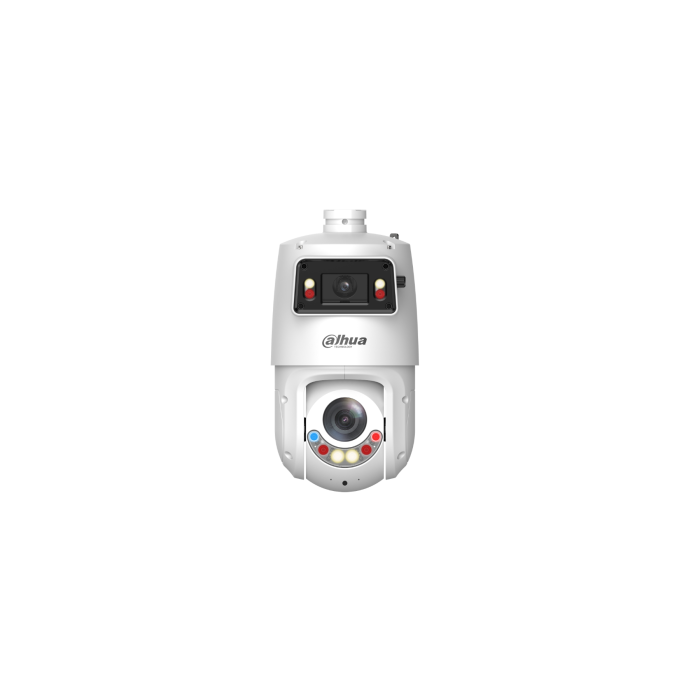

SDT4E425-4F-GB-A-PV1-S2 Xinghan AI X-Spans 4+4MP 25x Active Deterrence PTZ Network Camera - 2.8 mm and 5-125 mm
The Dahua X-Spans camera combines a 4 MP overview channel and a 4 MP PTZ detail channel, each delivering up to 2560 x 1440 video at 25/30 fps. The overview channel uses a 2.8 mm F1.0 fixed lens, while the detail channel uses a 5-125 mm motorised lens with 25x optical zoom, AI-ISP imaging, 120 dB WDR and electronic image stabilisation.
Smart Dual Illumination provides 30 m IR and warm-light coverage on the overview channel, with 100 m IR and 50 m warm-light coverage on the detail channel. The IP66-rated ADC12 camera includes red-blue light and sound warnings, dual microphones, a speaker, one audio input and output, two alarm inputs, one alarm output, microSD storage up to 512 GB, and 12 V DC or IEEE 802.3at PoE+ power.
Key Features
- Smart tracking links the overview and detail channels to rotate, zoom and focus on moving targets
- AcuPick works with supported back-end devices to locate human and motor vehicle targets in live and recorded video
- Auto Patrol initiates automated monitoring of predefined points after an IVS event
- Face detection supports six facial attributes, eight expressions and configurable snapshot strategies
- PTZ programming supports 300 presets, eight tours, five patterns and five scans
- IP Rating:
- IP66
- Voltage:
- 12 VDC
- Product Type:
- Camera
- Catalogue Family:
- CAMERA
- Camera Body:
- X-SPANS PTZ
- Intelligent Functions:
- Active Deterrence
