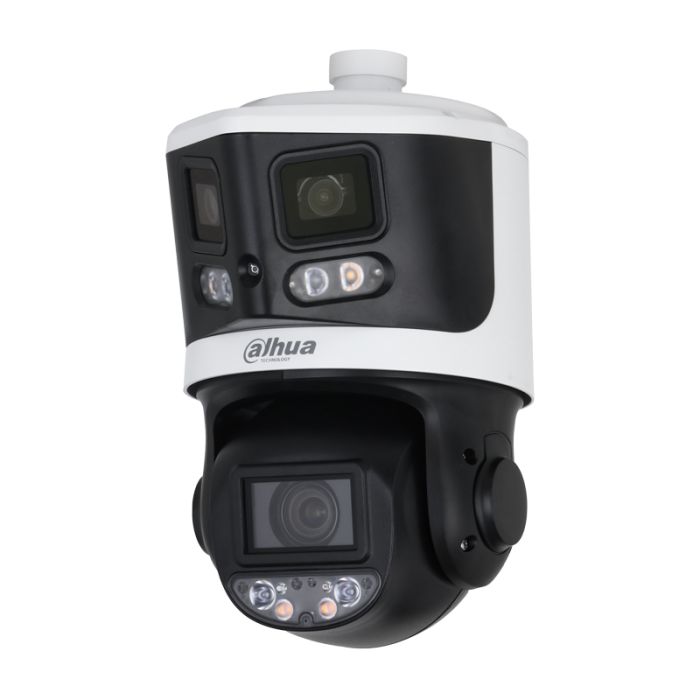

DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Panoramic and PTZ Network Camera
The DH-SDT3E410-8P-MB-A-PV1 is a Dahua TiOC panoramic and PTZ network camera that combines an 8 MP overview channel with a 4 MP detail channel and 10x optical zoom. Its panoramic channel outputs a 180-degree stitched wide-angle image, while Starlight imaging, Smart Dual Light control, up to 70 m IR illumination and up to 30 m warm light support clear monitoring across day, night and low-light scenes.
Built for active security applications, it links the panoramic and detail cameras so the PTZ lens can rotate, zoom and focus on targets entering the monitored area. Perimeter protection, SMD 4.0, face detection, Auto Tracking Lite, red and blue light warnings, sound alarms, IP66 protection, TVS 6000 V transient protection and ONVIF Profile S/G/T interoperability make it a practical choice for professional outdoor surveillance systems.
Key Features
- Gives operators wide scene awareness and PTZ detail from a single camera for clearer target monitoring
- Improves low-light visibility by combining Starlight imaging with automatic IR and warm-light switching
- Helps reduce nuisance alarms by applying intelligent perimeter detection and human/vehicle classification
- Supports real-time deterrence with configurable warning lights and sound alarm options
- Suits outdoor network installs with weather-rated protection, transient protection and supported ONVIF profiles
- Catalogue Family:
- CAMERA
- Image Sensors:
- Overview: 1/2.8 inch CMOS; Detail: 1/2.8 inch CMOS
- Resolution:
- Overview: 5376 x 1520; Detail: 2560 x 1440
- Optical Zoom:
- Detail channel: 10x
- Focal Length:
- Overview: 2.8 mm; Detail: 4 mm-40 mm
- Illumination Distance:
- Overview: 30 m IR and 30 m white light; Detail: 70 m IR and 30 m white light
- Video Compression:
- H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG
- Storage:
- Micro SD card up to 512 GB; FTP/SFTP; NAS
- Power Supply:
- 12 VDC 3 A +/- 10%; PoE+ 802.3at
- Protection:
- IP66; TVS 6000 V lightning proof; surge protection
- Operating Temperature:
- -30 °C to +60 °C
- Dimensions:
- 140.3 mm x 181.7 mm x 238.8 mm
- Product Type:
- Camera
- Megapixels:
- 4 MP, 8 MP
- Camera Body:
- Panoramic, PTZ
- Application:
- Outdoor
- Lens Type:
- Fixed Lens, Motorised Lens
- Colour:
- White
- IP Rating:
- IP66
- Series:
- Wizsense
- Lens Size:
- 2.8 mm, 4.0-40 mm
- IR Distance:
- 60 m
- Intelligent Functions:
- AI Scene Self-adaptation, IVS (Intelligent Video System), Perimeter Protection, SMD 4.0, Star Light / Starvis, EPTZ
- Audio:
- Mic, Speaker
- Built-in Microphone:
- Yes
- Voltage:
- 12 VDC
- Type of PoE:
- PoE+
- Format:
- IP Only
