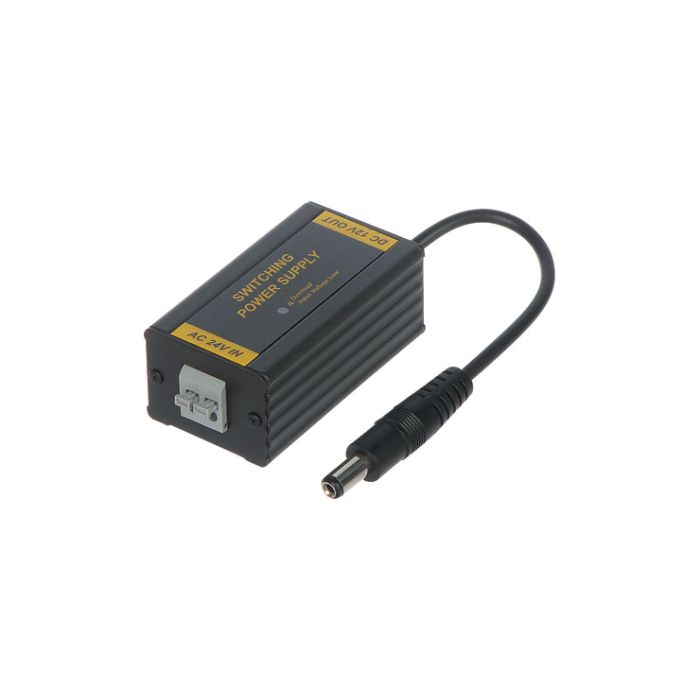

15-AC24H-2A 24 V AC or DC to 12 V DC Switching Power Supply
The 15-AC24H-2A is a compact switching power supply that converts a 24 V AC or DC input into a regulated 12 V DC output. Delivering up to 2 A, it is designed to power compatible cameras and in-vehicle TFT monitors from an existing 24 V power source.
Built-in surge protection supports dependable input-side operation, while green and red LED indicators provide clear visual feedback for normal operation, overload conditions or low input voltage. Its compact 57.5 x 32 x 24 mm housing allows straightforward integration into space-conscious low-voltage installations.
Key Features
- Accommodates both AC and DC input sources for flexible 24 V system integration
- Regulated output helps maintain a stable 12 V DC supply
- Up to 2 A output capacity supports compatible camera and display applications
- Compact lightweight construction simplifies positioning within confined spaces
- Visual status indication makes operating and fault conditions easier to identify
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Button Colour:
- Red
- Reset Operation:
- Twist to reset
- Contact Configuration:
- Isolated normally open (NO) and normally closed (NC) contacts
- Mounting Diameter:
- 22 mm
- Switch Rating:
- 250 V, 1.5 A
- IP Rating:
- IP65
- Illumination:
- Non-illuminated
