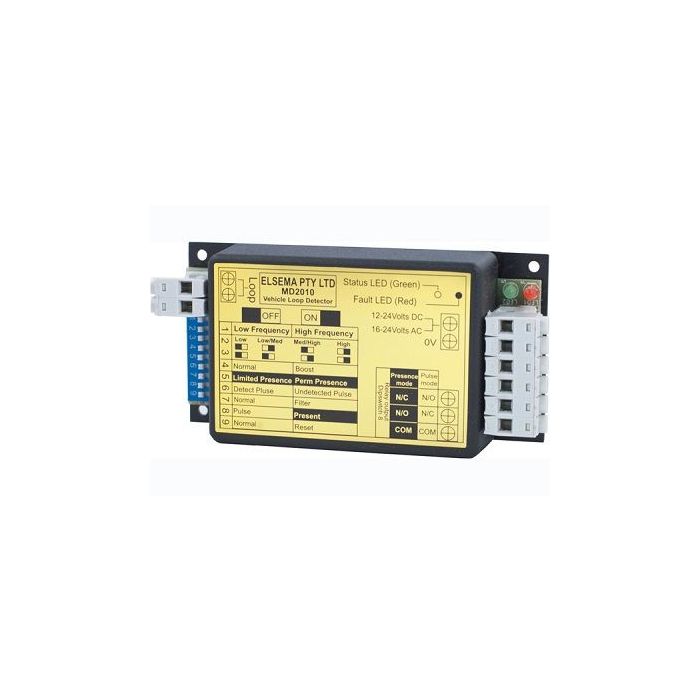

MD2010 Elsema 12-24 V AC DC Loop Detector
The MD2010 is an Elsema loop detector used to detect metal objects such as vehicles, motorbikes and trucks. Vehicle loop detector with 12-24 VDC or 16-24 VAC operation, selectable sensitivity, pulse or presence relay output, and LED status indication.
Suitable for automatic doors and gate systems requiring vehicle detection. Features DIP-switch selectable sensitivity, frequency, boost, presence mode, and relay response for bitumen, concrete, and reinforced concrete installations.
Key Features
- Vehicle detection supports gate and door control when a car or motorbike is present.
- Selectable sensitivity helps tune the detector to different installation surfaces.
- Pulse or presence modes give installers control over relay behaviour.
- Loop and fault indications assist commissioning and troubleshooting.
- Broad AC/DC supply range supports common automation control power sources.
- Catalogue Family:
- READERS
- Product Type:
- Readers
- Supply Voltage:
- 12 to 24 V DC; 16 to 24 V AC
- Relay Modes:
- Pulse or presence
- Sensitivity:
- Selectable by dip switch
- Loop Connection Distance:
- Do not exceed 30 m between control box and loop
- Application:
- Automatic doors or gates when a vehicle is present
- Indicators:
- Power up and loop activation LED indicator
