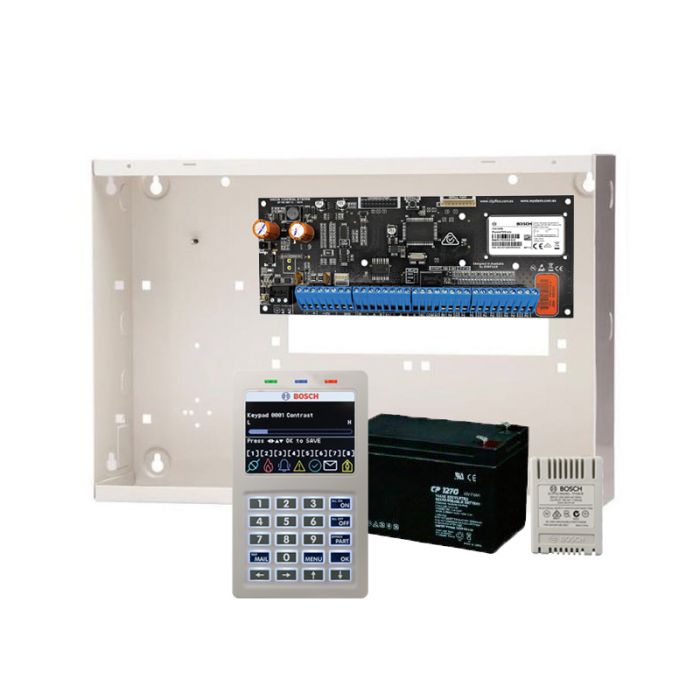

S6K-COLOUR-IP-KIT Bosch Solution 6000 IP Kit with Wi-Fi Colour Keypad
The S6K-COLOUR-IP-KIT is a Bosch Solution 6000 kit pairing one CC615PB IP control panel with one CP737B Wi-Fi keypad. The panel provides integrated access control for up to 16 doors, 16 onboard zones expandable to 144, and 5 onboard outputs expandable to 37.
The kit suits integrated intrusion and access installations that need a colour keypad interface, smart card keypad operation and IP reporting pathways. The Solution 6000-IP platform supports up to 8 areas and 990 PIN, token, keyfob and fingerprint users, while the CP737B keypad adds Wi-Fi, MiFare smart card reading and a 3.5 inch colour display.
Key Features
- Matched control panel and Wi-Fi colour keypad support an integrated kit configuration.
- Large zone and user capacity supports more complex access and intrusion sites.
- Integrated access control supports up to 16 doors within the Solution 6000-IP platform.
- Colour keypad with smart card reader gives users a clearer local interface.
- IP reporting and interactive service support broaden monitoring and control options.
- Catalogue Family:
- ALARM SENSOR
- Kit Contents:
- One CC615PB IP control panel and one CP737B Wi-Fi keypad
- Onboard Zones:
- 16
- Expandable Zones:
- 144 wired or wireless
- Areas:
- Up to 8
- Users:
- 990 PIN, token, keyfob and fingerprint users
- Access Control:
- Up to 16 doors
- Outputs:
- 5 onboard, expandable to 37
- Panel Communications:
- CID, SIA, Email, Voice, GSM-SMS, Connetix IP and CSV-IP
- Panel Operating Voltage:
- 10.2 VDC
- Battery Capacity:
- 7.2 Ah
- Keypad Power:
- +12 VDC, 110 mA max; LAN powered +9 VDC to +16 VDC
- Keypad Wi-Fi:
- IEEE 802.11n, IEEE 802.11g and IEEE 802.11b
- Keypad Dimensions:
- 149 mm x 88 mm x 21.5 mm
- Product Type:
- Alarm Sensor
