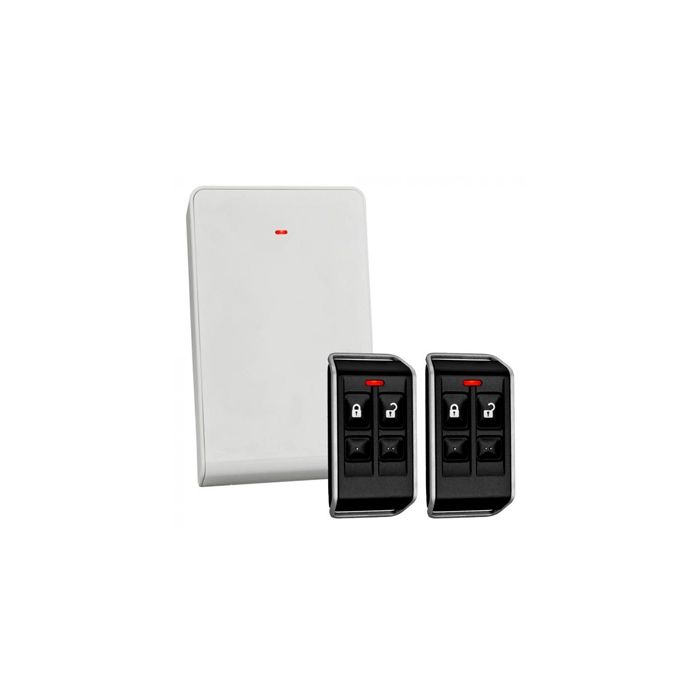

RFRC-STR2DLX-KIT RADION DSRF Deluxe Keyfob Kit
The RFRC-STR2DLX-KIT is a Bosch RADION DSRF deluxe keyfob kit built around the RFRC-STR2 receiver platform. The receiver connects RADION and DSRF wireless peripherals to supported control panels over terminal-block wiring.
The receiver supports 433.42 MHz RF communication, dual internal antennas, wall and cover tamper detection, RF interference reporting and signal diagnostics. This makes the kit useful where a supported Bosch panel needs a managed wireless receiver point for RADION or DSRF device integration.
Key Features
- Receiver-based kit supports wireless peripheral connection to compatible Bosch panels.
- Dual internal antennas help improve RF reception reliability.
- Tamper and jamming reporting support stronger supervision of the wireless link.
- LED status feedback assists setup and troubleshooting at the receiver.
- RADION and DSRF device support gives installers flexibility within the receiver ecosystem.
- Catalogue Family:
- CARDS
- Receiver Platform:
- RADION receiver ST / RFRC-STR2 receiver context
- Frequency:
- 433.42 MHz
- Operating Voltage:
- 12 VDC
- Maximum Current Draw:
- 100 mA
- Dimensions:
- 139.7 mm x 209.6 mm x 31.8 mm
- Wire Length:
- 300 m
- Wire Gauge:
- 0.65 mm to 1.3 mm
- Operating Temperature:
- -10 deg C to +55 deg C
- Relative Humidity:
- Up to 93% non-condensing
- Use:
- Indoor use
- Product Type:
- Card / Fob
