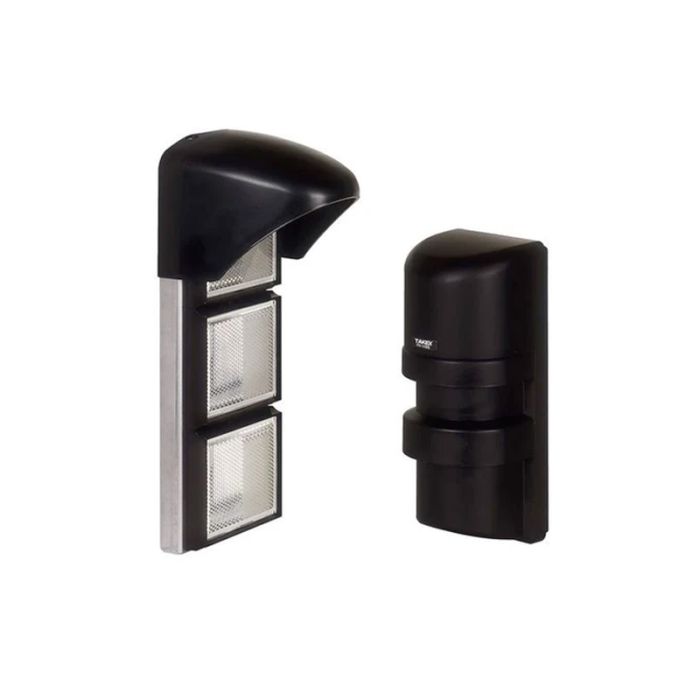

PR-11BE Reflector Photoelectric Beam Sensor - 11 m Outdoor
The PR-11BE is a TAKEX reflector photoelectric beam sensor suitable for indoor and outdoor use. It uses a near-infrared reflective beam interruption system with wiring required only at the sensor side, helping simplify installations where two-sided wiring is difficult.
This model is suited to protected openings and short outdoor beam paths where a reflector-based active infrared solution is preferred. Rotary optics, response-time adjustment, external light protection and operation LEDs help installers align and check the detection path.
Key Features
- Supports reflector-beam protection without wiring both sides of the opening.
- Provides rated outdoor protection from 1 m to 11 m and indoor protection from 1 m to 15 m.
- Allows lens movement horizontally and vertically for flexible alignment.
- Helps outdoor stability with external light compensation and attenuation checking.
- Connects to wired alarm systems with dry-contact alarm and tamper outputs.
- Wiring:
- Hardwired
- Product Type:
- Alarm Sensor
