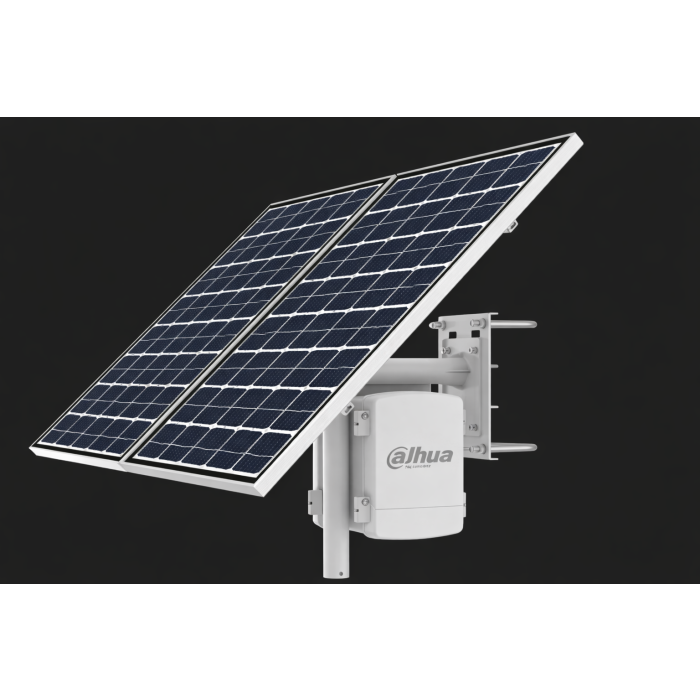

PFE220-12CM-M200 200 Wp Integrated Solar System
The PFE220-12CM-M200 is a Dahua DH-PFE220-12CM-M200 integrated solar system with a 200 Wp monocrystalline silicon solar panel, MPPT charging controller and 12.8 VDC output. It provides a 5 A output current, IP66 protection and support for connected battery data information.
It is intended for pole-mounted solar power support where Dahua matching batteries and selected wireless bridge installations are used within the system scope. Its adjustable mounting angle, white finish, Q235 battery compartment and aluminium photovoltaic frame make it suitable for structured outdoor power deployments.
Key Features
- Integrated solar format combines panel, controller and mounting structure in one system
- MPPT charging helps the system manage solar input efficiently
- IP66 protection supports outdoor use when installed as specified
- Adjustable angle helps installers orient the panel for the site layout
- Battery data support improves visibility of the connected power system
- Catalogue Family:
- ACCESSORIES
- Model:
- DH-PFE220-12CM-M200
- Solar Panel:
- 200 Wp monocrystalline silicon
- Output Voltage:
- 12.8 VDC (10.8-14 VDC)
- Output Current:
- 5 A
- Charging Method:
- MPPT
- Compatible Battery Model:
- DH-PFE320-LP1207
- Maximum Connected Batteries:
- 8
- Protection:
- IP66
- Dimensions:
- 1348.0 x 819.0 x 909.7 mm
- Weight:
- 30 kg
- Product Type:
- Accessories
