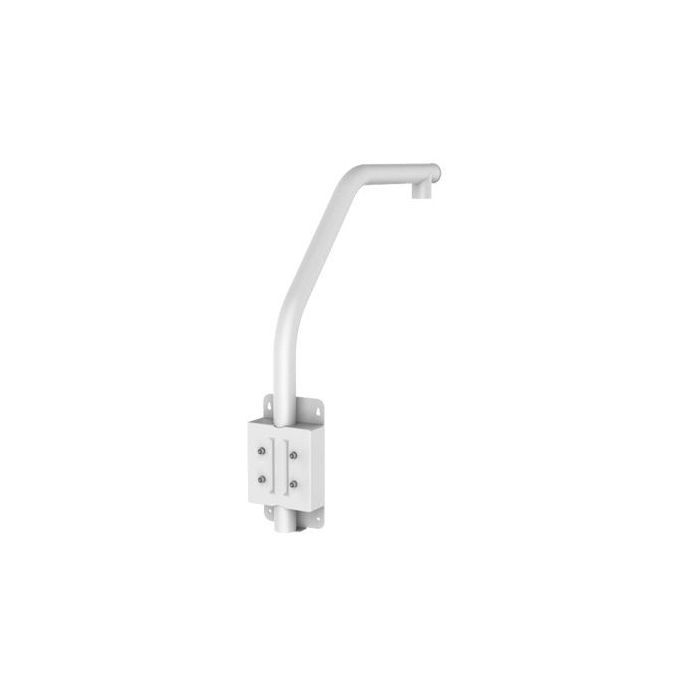

PFB303S Parapet Mount Bracket
The PFB303S is a Dahua DH-PFB303S parapet mount bracket for camera mount installations, built from aluminium and SUS 430. It has a rotatable design, 7 kg load bearing and 879 x 836 x 180 mm dimensions.
It is suited to parapet mounting where the camera position needs a stable, purpose-built bracket rather than a standard wall base. The white bracket supports clean exterior installations and operates across -40°C to +60°C when used with compatible Dahua camera accessories.
Key Features
- Parapet format supports camera placement where wall mounting is not ideal
- Rotatable design helps installers align the camera position more easily
- Metal construction provides a practical support structure for compatible cameras
- High load rating gives confidence when matching heavier camera assemblies
- White finish supports a neat visual result on common exterior surfaces
- Catalogue Family:
- CAMERA BRACKET
- Model:
- DH-PFB303S / PFB303S
- Material:
- Aluminium
- Dimensions:
- 879 x 836 x 180 mm
- Load Bearing:
- 7 kg
- Weight:
- 4.3 kg
- Colour:
- White
- Operating Temperature:
- -40°C to +60°C
- Humidity:
- 0-90% RH
- Product Type:
- Camera Bracket
